9 REVERB EFFECTS IN ONE

This knob allows you to select different reverb tones, 9 in total.

ROOM,HALL.PLATE,SPRING,SHIMMER,CLOUD,BLOM,SWEL,LOFI

Suitable for most musical styles

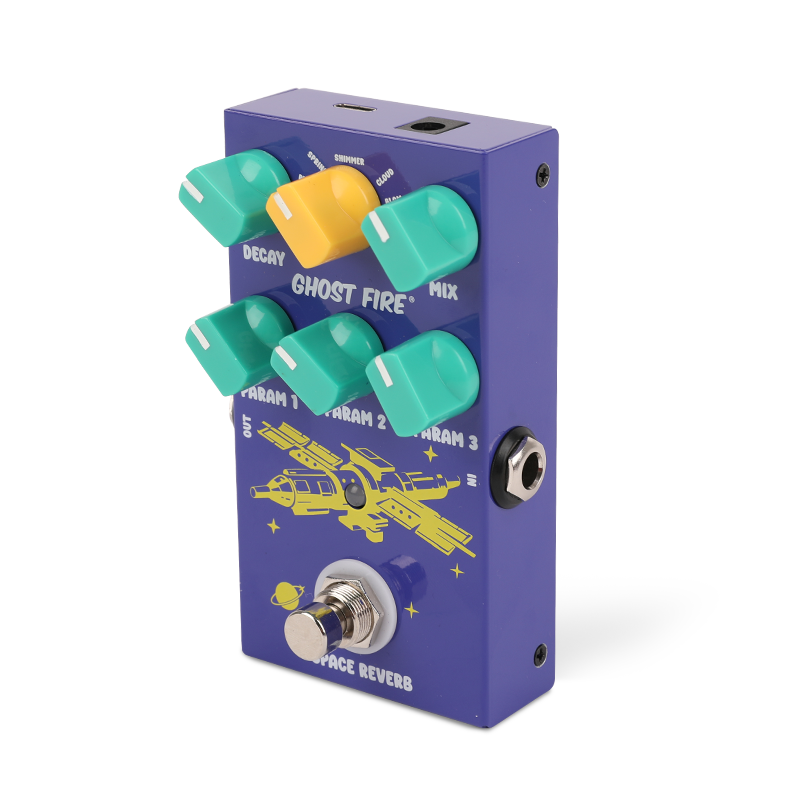

Product Features

1.Power connector 2.USB connector 3.DECAY knob 4.TYPE knob 5.MIX knob 6.PARAM1 knob 7.PARAM2 knob 8.PARAM3 knob 9.OUTPUT jacks: 1/4" mono audio output jacks 10.LED: Indicates the status of the effect 11.Input Connector: 1/4" mono audio input connector 12.Pedal: Activates the effect or switches it to passthrough (true passthrough).

Power interface: Use a 9V DC transformer (external positive and internal negative).

USB interface: Supports 5V power supply, it is recommended to use a 5V1A adapter.

DECAY knob: Adjust the duration of the echo effect.

TYPE knob: With this knob, different reverb tones can be selected, with a total of 9 gears. Please refer to the tone introduction.

MIX knob: Adjust the volume ratio of dry sound and reverb wet sound.

PARAM1 knob: The functions of the knob are not completely the same under different reverb tones. Please refer to the tone introduction.

PARAM2 knob: Under different reverb tones, the knob functions may not be completely the same. Please refer to the tone introduction.

PARAM3 knob: The functions of the knob are not completely the same under different reverb tones. Please refer to the tone introduction.

Output interface: 1/4 "mono audio output interface.

LED light: indicates the status of the effector. The light is on, indicating that the effect is on; The light is off, indicating a through state.

 Input interface: 1/4 "mono audio input interface.

9-Mode Reverb Selection

Gear 1: ROM

Room reverberation simulates the sound of a room with a simple structure, where many reflections are absorbed by soft materials in the room and the sound is reflected off the walls.

PARAM 1HIGH PASS is high pass and only works on wet sounds.

PARAM 2 LOW PASS is a low-pass device that only applies to wet sounds.

PARAM 3 creates a retro and charming background sound by producing a small periodic increase and decrease in the pitch of reverberating wet sounds.

Gear 2: HALL

The reverberation in the hall gives a broad, slightly scattered feeling. It can simulate grand ambient sounds.

PARAM 1 HIGH PASS

PARAM 2 LOW PASS

PARAM 3 DRIFT

Gear 3: PLATE

Plate reverberation is created on a large metal material and is a very bright and strong scattering sound.

PARAM 1 HIGH PASS

PARAM 2 LOW PASS

PARAM 3 DRIFT

Gear 4: SPRING

Spring reverberation is a common type of reverberation, where the sound signal is amplified onto the spring, and then the pickup captures the resonance sound of the spring, forming the reverberation that people hear in space. The characteristic of spring reverberation is the unique trembling sensation from the spring.

PARAM 1 HIGH PASS

PARAM 2 LOW PASS

PARAM 3 DWELL, control the number of springs

Gear 5: SGIMMER

Low light reverberation is a type of sound where there is a pitch shift in the wet sound of the reverberation. By adjusting the PITCH knob, the pitch of the low light sound can be adjusted, creating an inharmonious interval and creating a terrifying background sound. This is a very creative use: harmonious intervals can also be adjusted, creating a beautiful sound with its own beauty. In the reverberation ending, you will hear a beautiful sound that is like the low light pumping transmission, like a heavenly sound, giving people the feeling of encountering the process of sunrise from low light to full brilliance on open soil.

PARAM 1 HIGH PASS

PARAM 2 PITCH adjusts the pitch of the low light sound, with a minimum pitch that matches the original sound and a maximum pitch that is two octaves higher than the original sound.

PARAM 3 AMOUNT quantity, controlling the amount of low light sound

Gear 6: CLOUD

Cloud reverberation, a magnificent large-scale environmental reverberation, sounds like sound convolving from clouds. With just one note played, there are many sounds coming from various places in the wet reverberation, and the sound sounds are very loud

Broad.

PARAM 1 HIGH PASS

PARAM 2 LOW PASS

PARAM 3 DIFFUSION, with adjustable environmental dimensionality. When the knob is turned clockwise, the early reflected wet reverb is softened, sounding smoother and blurring the boundary between delay and reverb.

Gear 7: BLOOM

Blooming reverb, adding more diffusion effects to the reverb effect to achieve a gradually blooming feeling. It is recommended that users try using shorter DECAY and longer LENGTH, or longer DECAY and shorter LENGTH, to experience how these two parameters interact and complement each other, in order to achieve the atmosphere you want.

PARAM 1 HIGH PASS

PARAM 2 LOW PASS

PARAM 3 LENGTH controls the duration of the blooming effect.

Gear 8: SWELL

Expansive reverberation gradually introduces a reverberation effect after the dry signal, with a natural connection between the two signals to achieve a slight upward effect and a sense of evolving atmosphere, just like a volume pedal that can control the wet sound of reverberation.

PARAM 1 HIGH PASS

PARAM 2 LOW PASS

PARAM 3 PARAM3: RISETIME rise time. When adjusting the knob clockwise, the rise time will increase and the auditory expansion effect will weaken, making it suitable for playing chord rhythms; On the contrary, when the rise time becomes shorter, it is suitable for playing melodies.

Gear 9: LOFI

Low fidelity reverb is a mysterious, profound, retro, and special sound. Featuring realistic Lofi texture, warm and charming nostalgic atmosphere, and unique white noise, suitable for retro style music

PARAM 1 SAMPLE RATE sampling rate, only applicable to wet sounds

PARAM 2 NOISE white noise

PARAM 3 DRIFT
