14 zoll mountainbike Belter 14

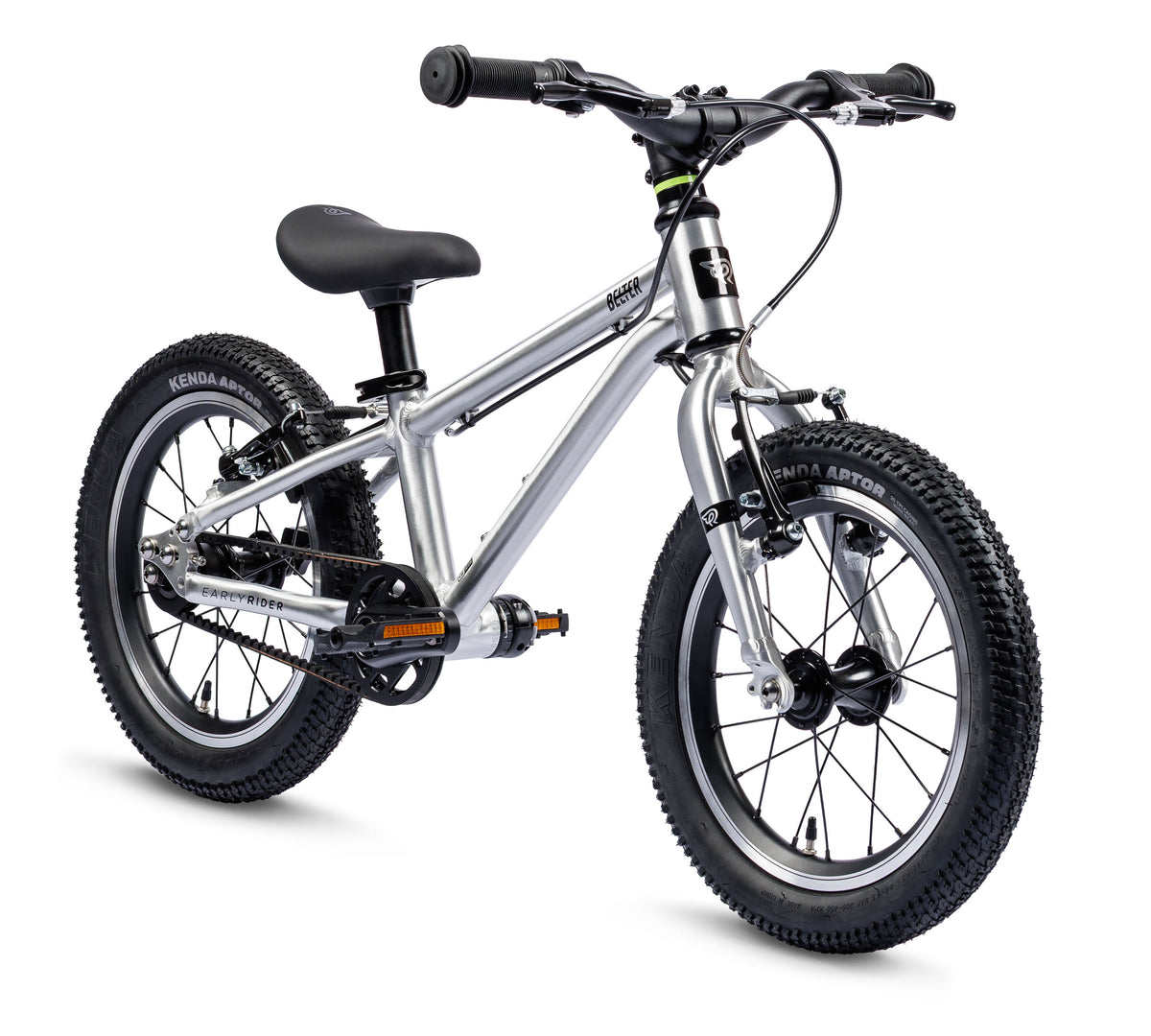

14 zoll mountainbike Belter 14Small but perfectly formed Designed for confident city and urban riding, the Belter 14 features an updated geometry for enhanced stability and responsive handling. The aluminium frameset with sliding dropouts supports a low maintenance 8mm belt drivetrain, while sealed bearing wheels and Kenda Aptor 1. 75" tires ensure a smooth, reliable ride. Reduced diameter grips and kid optimized gear ratios provide comfort and control for growing hands and

Small but perfectly formed...

Designed for confident city and urban riding, the Belter 14 features an updated geometry for enhanced stability and responsive handling. The aluminium frameset with sliding dropouts supports a low-maintenance 8mm belt drivetrain, while sealed bearing wheels and Kenda Aptor 1.75" tires ensure a smooth, reliable ride. Reduced-diameter grips and kid-optimized gear ratios provide comfort and control for growing hands and legs—perfect for young urban explorers.

WORTH THE WEIGHT:

5.4kgs with the awesome Kenda 1.75" tyres we specify in the box.

ASSEMBLY INSTRUCTIONS:

Your bike will arrive carefully packaged and boxed with both wheels attached. The handlebar will be ziptied to the top tube, simply remove the bars and all packaging and attach to the stem. Then simply add the pedals. Please retain your manual.

[Left column]

STANDOVER HEIGHT

37.0CM

FRAME

HAND BRUSHED AL6061, FORGED DROP OUTS

FORK

HAND BRUSHED AL6061, FORGED DROP OUTS

STEERER TUBE

AL6061

CRANKS

CRUX CNC'D AL6061, 80MM

PEDALS

RESIN PLATFORM, SEALED CARTRIDGE BEARING (upgraded from image above)

BOTTOM BRACKET

CRUX EXTERNAL CUP, SEALED CARTRIDGE BEARING

RIMS

14 x 20H, DOUBLE WALLED AL6061

REAR HUB

CNC'D AL6061, 4 SEALED BEARING CASSETTE FREE HUB,

FRONT HUB

CNC'D AL6061, SEALED CARTRIDGE BEARING

AXLES

AL6061

BELT

EARLY RIDER 770MM x 10.0P x 8MM WIDTH

FRONT SPROCKET

CNC'D AL6061, 30T, AL6061 AXLE, DUAL GUARD

*Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice*

CLICK HERE TO VIEW THE USER MANUAL

[Right column]

WEIGHT

5.4KGS W/O PEDALS

REAR SPROCKET

CNC"D AL6061, 18T, DUAL GUARD

BRAKES

TEKTRO 837AL, 102MM ARMS

LEVERS

TEKTRO SHORT REACH JL352

FRONT TYRE

KENDA APTOR 14 x 1.75", 30TPI WB

REAR TYRE

KENDA APTOR 14 x 1.75", 30TPI WB

HEADSET

1 1/8” CONVENTIONAL, BLACK

STEM

FORGED AL6061, 35MM REACH

BARS

440MM DOUBLE BUTTED AL6061, 25MM RISE, 19MM GRIP AREA

GRIPS

ER 19MM SOFT TOUCH MUSHROOM

SEAT POST

AL6061, 25.4MM x 150MM

SADDLE

ER WING COMBO BLACK

SEAT CLAMP

ER BOLT, 28.6MM

[Table]
