Description
gear thread electrical center b2cSPECIFICATIONS GA1024 N20 Flip Output M4 * 55mm Thread Long Shaft DC 12V (6V 3V) Mini Gear Motor,dc motor n20 m4,flip n20 gear motor Full Metal Precision Gearbox Reduce 30~4000RPM Brand Name: Anmiy Certification: NONE Origin: Mainland China Output Power: 1W Commutation: Brush Type: Micro Motor Protect Feature: Drip proof Construction: Permanent Magnet Usage: car Model Number: GA1024 N20 S0455T The N20 series motors have various models, click for
SPECIFICATIONS

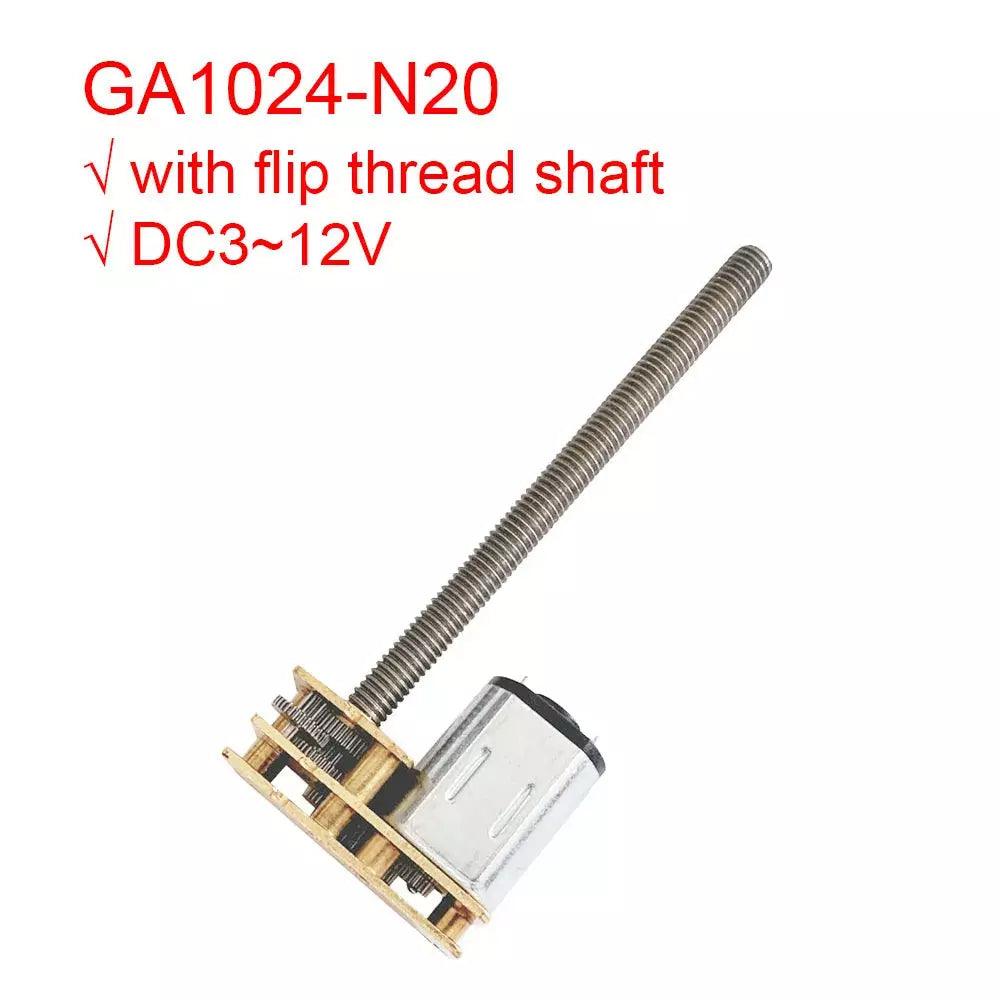

GA1024-N20 Flip Output M4 * 55mm Thread Long Shaft DC 12V (6V 3V) Mini Gear Motor,dc motor n20 m4,flip n20 gear motor
Full Metal Precision Gearbox Reduce 30~4000RPM
Brand Name: Anmiy
Certification: NONE
Origin: Mainland China
Output Power: 1W
Commutation: Brush
Type: Micro Motor
Protect Feature: Drip-proof
Construction: Permanent Magnet
Usage: car
Model Number: GA1024-N20-S0455T
The N20 series motors have various models, click for details:Model: GA1024-N20-S0455T
Gear Box Name: GA1024
Gear Box Type: Spur Gear
Motor Body Name: N20 (B1215)
Motor Body Type: DC Brushed Motor (BDC)
Rated Voltage: DC 12V (can be reduced to 6V, 3V, etc.)
Motor Weight: 20g (approx.)
Motor Length: 64mm
Motor Body Size: 24mm(length) * 10mm(width) * 19.2mm(height)
Shaft Number: Single
Shaft Size: 4mm(diameter) * 55mm(length)
Shaft Shape: Treaded, M4 * 55mm
Motor Use Temperature: 0℃ - 70℃
Motor Storage:
- Temperature: 0℃ - 40℃
- Humidity: 15% -90% RH
The motor's rated voltage is DC 12V, it can be reduced to 6V, 3V, etc. When the voltage is reduced, its speed, current and torque are reduced accordingly in proportion.
The Speed (RPM) in the purchase option is based on DC12V.
When the voltage is reduced to 6V, the speed is about 1/2 of those of 12V. So if you want a motor of 6V m RPM, please select 12V 2*m RPM, such as want 6V 30 RPM select 12V 60 RPM.
When the voltage is reduced to 3V, the speed is about 1/4 of those of 12V. So if you want a motor of 3V n RPM, please select 12V 4*n RPM, such as want 6V 15 RPM select 12V 60 RPM.
The No-load Speed at rated voltage DC 12V (Speeds in purchase options) is:
30 50 60 80 100 120 140 160 200 240 300 400 500 600 800 1000 1200 1400 1600 2000 2400 3000 4000 RPM
The No-load speed at DC 6V is (Speeds in purchase options divided by 2):
15 25 30 40 50 60 70 80 100 120 150 200 250 300 400 500 600 700 800 1000 1200 1500 2000 RPM
The No-load speed at DC 3V is (Speeds in purchase options divided by 4):
7.5 12.5 15 20 25 30 35 40 50 60 75 100 125 150 200 250 300 350 400 500 600 750 1000 RPM
For more voltages and speeds, please contact us.
Notes:
The vast majority of this serial motor models are shipped within 3 days after receipt of the paid order, but due to the large number of product models, some models may be temporarily out of stock and require an additional 3 to 4 days to stock, so the promised delivery time is 7 days.
Package included:
- 1 x Motor
