sim racing pedal height Heusinkveld RaceCenter Pedals [Throttle & Brake Set] – Advanced SimRacingLooking for the perfect pedal for commercial environments? RaceCenter pedals are engineered for commercial use, made to perform in the most demanding areas. The design is focused on durability and easy maintenance. Ready to offer your visitors the highest simracing experience! FEATURES A Premium Simracing Experience A realistic progressive brake feel, a super smooth throttle, large pedal plates and a heavy duty look and feel. Offer Your Visitors a

Looking for the perfect pedal for commercial environments? RaceCenter pedals are engineered for commercial use, made to perform in the most demanding areas. The design is focused on durability and easy maintenance. Ready to offer your visitors the highest simracing experience!

FEATURES

A Premium Simracing Experience
A realistic progressive brake feel, a super smooth throttle, large pedal plates and a heavy duty look-and-feel.

Offer Your Visitors a Unforgettable Experience
These pedals are robust and maximize your simulator uptime, the perfect solution for your simcentre. In commercial environments, reliability is an absolute must. We have focussed on durability and reliability. So you can focus on the commercial side of your business.

Be Assured of Maximum Simulator Uptime and a Long Service Life.
With the main pedal parts constructed out of laser cut steel, oversized load cell sensors and overload protection on every pedal, these are suited for high-frequency commercial use.

Built for Commercial Applications
Adding the Heusinkveld RaceCenter pedals to your commercial environment gives you maximum uptime, easy maintenance, a realistic pedal feel and a long service life.

Highly Adjustable
Choose from a very soft to hard brake resistance. Adjust the required brake force on the fly from 15 to 70kg with the included SmartControl software.
Choose your perfect pedal angle. Always find your preferred simulator pedal setup.

Easy to Set Up
All pedals ship pre-calibrated. Settings are stored on the pedal controller so you can easily swap pedals sets between simulators.
Need to recalibrate? The included Smartcontrol software has an easy to follow calibration wizard.

Easy to Maintain
Designed for a long service life. Easy access to wear parts. Spare kits readily available to support your operation.

ABOUT THE RACECENTER PEDALS

Engineering

Heusinkveld RaceCenter pedals are a durable and reliable solution for commercial users who need maximum uptime of their simulators.

The design of these pedals is focused on durability and easy maintenance, all while offering a realistic pedal feel using load cell sensors and a force sensing brake. With the main pedal parts constructed out of laser cut steel, oversized load cell sensors (insensitive to dust and dirt and do not wear out ) and overload protection on every pedal these are suited for high-frequency commercial use.

Whether you operate a simracing venue or need pedals for civil training purposes, the wide range of possible adjustments ensure RaceCenter pedals can be set-up in a perfect way for your application. For larger projects we offer comprehensive spare- & maintenance packages.

Proven Heusinkveld technology has been used to ensure long-term durability and reliability. Quality bearings and tight manufacturing tolerances on critical points such as pivots minimize wear and unnecessary play. Tested up to one million duty cycles under high load, this pedal set will go the distance in any commercial environment.

Adjustment Options
RaceCenter pedals also retain the key Heusinkveld feature of adjustability

All Pedals:

• Pedal angle
• Pedal plate height

These adjustments allow you to optimize the driving ergonomics for your preferred simulator build.

Brake Pedal:

• Hard (default) or soft resistance (2 settings in total).

The brake pedal force and resistance can be set from extremely soft to very hard, allowing you to create optimal settings for your specific use case.

Software:

• Output curves
• Deadzones

Components

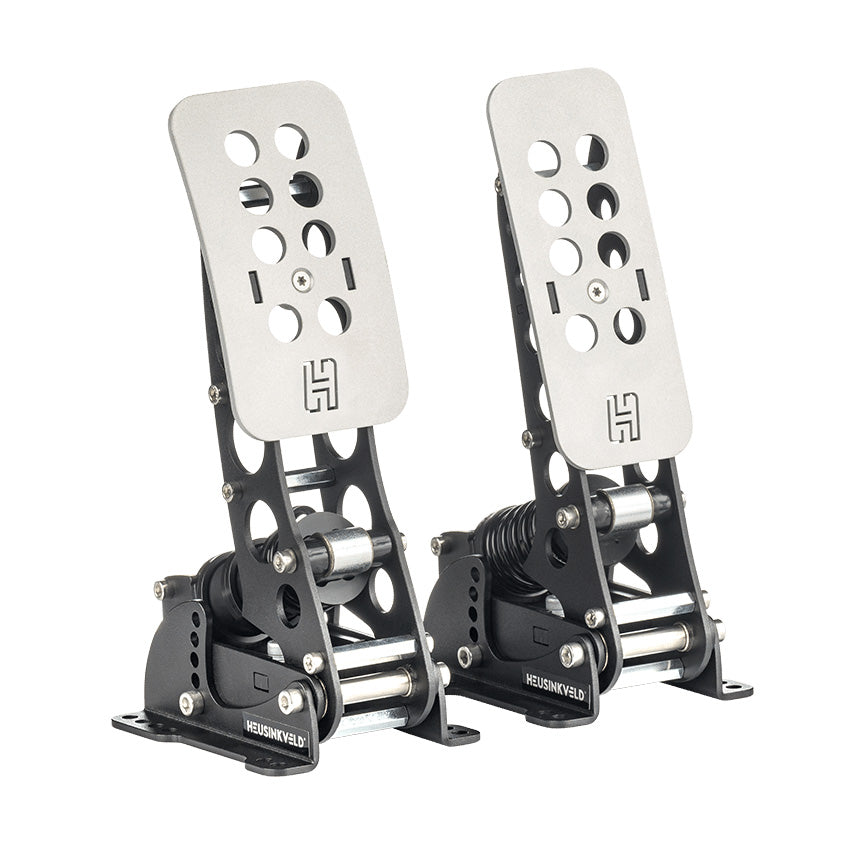

Heusinkveld RaceCenters 2-pedal set contains a throttle and brake pedal

Throttle
The throttle pedal gives a solid, smooth and controlled race feel. It is fitted with a long pedal plate, your clients will have no problem keeping their foot planted on the pedal. The throttle is fitted with an oversized loadcell which acts as a position sensor. The sensor is protected from abuse by a physical end stop and is unfazed by dust or dirt.

Brake
The brake pedal enables you to configure any brake pedal feel, ranging from easy-going road cars to thoroughbred race cars. Simply change the brake pedal resistance (4 settings) and required force ((from appr. 15kg to 70kg).  Designed to withstand frequent abuse,  featuring an oversized 200kg loadcell, resulting in a maximum actual pedal force of 70kg. The elastomers are clamped between newly designed cup spacers, these elastomers show absolute minimal wear even after thousands of hours of use.

Mounting
RaceCenter pedals can be mount with the flanged M6 bolts (Torx 25) onto our Heusinkveld Ultimate+ Baseplate or a very rigid base. Longer bolts are included for different thickness pedal plates.

Project Support
Heusinkveld has extensive experience with supporting high-volume simulator builders and operators of sim centers. Although our products have proven themselves to be extremely reliable, no product will ever have an uptime of 100%.

In addition to the RaceCenter pedal product itself, we therefore offer the following additional components to support your operations. These can be either used for periodic maintenance or, in the rare case of a technical malfunction, serve as (drop-in) replacement:

• Spare elastomer kit.
• Spare parts kit.
• Spare pedals kit.

If you are considering an order of RaceCenter pedals for a larger project, feel free to send us an email at [email protected] for a tailor made offer which includes pedal sets and additional support components.

Electronics
Heusinkeld Sim Pedals Ultimate+ use a custom made 12-bit USB controller, which works with Heusinkveld SmartControl software. The controller enclosure is made of steel and is equipped with 4 mounting holes for easy mounting to your simulator. It can also be mounted to the underside of the optional Sim Pedals Ultimate+ Baseplate.

SPECIFICATIONS

WARRANTY

Heusinkveld gives a 24-month warranty starting from the date of delivery. Repairs and/or replacement deliveries do not create an extension of the warranty period. The warranty means that defects will be remedied free of charge within a reasonable period of time, either by repairing or replacing the products and/or parts in question. The products and/or parts replaced become the property of Heusinkveld. The warranty does not include any further right to compensation from Heusinkveld. The warranty does not cover defects resulting from:

• a. incorrect setup and/or installation;
• b. non-compliance with the (safety) regulations stated in the manual;
• c. inappropriate use;
• d. inappropriate operation;
• e. external influences, such as transport damage and impact damage;
• f. repairs and modifications not carried out by Heusinkveld;
• g. use of non-original parts. Heusinkveld does not warrant that the products are suitable for the purpose for which the Buyer wishes to use them. Under no circumstances are the products suitable for use other than in a simulator.

The products are not suitable for use on (public) roads, on a test track, or as (part of) an electric vehicle.
