Description
all pedal jeff loomis AllPedal Devil's TriadUnleash Beastly Guitar Tones Unmatched Tone. Total Versatility. Introducing the Devil's Triad, the ultimate weapon for guitarists seeking precision, power, and atmosphere. Designed in close collaboration with the legendary Jeff Loomis (Nevermore, Arch Enemy), this all in one pedal captures the essence of his precisely tuned high gain sound. Whether you are tracking in the studio or commanding the stage, the Devil's Triad is your comprehensive solution
Unleash Beastly Guitar Tones
Unmatched Tone. Total Versatility.
Introducing the Devil's Triad™, the ultimate weapon for guitarists seeking precision, power, and atmosphere. Designed in close collaboration with the legendary Jeff Loomis (Nevermore, Arch Enemy), this all-in-one pedal captures the essence of his precisely tuned high-gain sound.
Whether you are tracking in the studio or commanding the stage, the Devil's Triad™ is your comprehensive solution for beastly tone.
Ultimate High-Gain Architecture
Unlock a new world of sonic possibilities. The Devil's Triad™ features an analog op-amp drive section engineered to add depth, tightness, and aggressive pick attack to any amplifier.
-
Expressive Drive: Dial in everything from a subtle, expressive overdrive to a crushing, powerful distortion.
-
20dB Boost: Need to cut through the mix? The dedicated analog op-amp boost provides up to 20dB of additional volume exactly when you need that extra push.
-
Atmospheric Depth: Add dimension and moody ambience to your leads with luscious digital plate reverb and a digital delay featuring an adjustable period of 50–500ms.
The All-In-One Rig Solution
Adaptability is the core of the Devil's Triad™. It functions not just as a pedal, but as a command center for your rig.
-
Front-of-Amp: Run it as a standard stompbox into the front of your amplifier.
-
Preamp Mode: Use it as a dedicated pedalboard preamp.
-

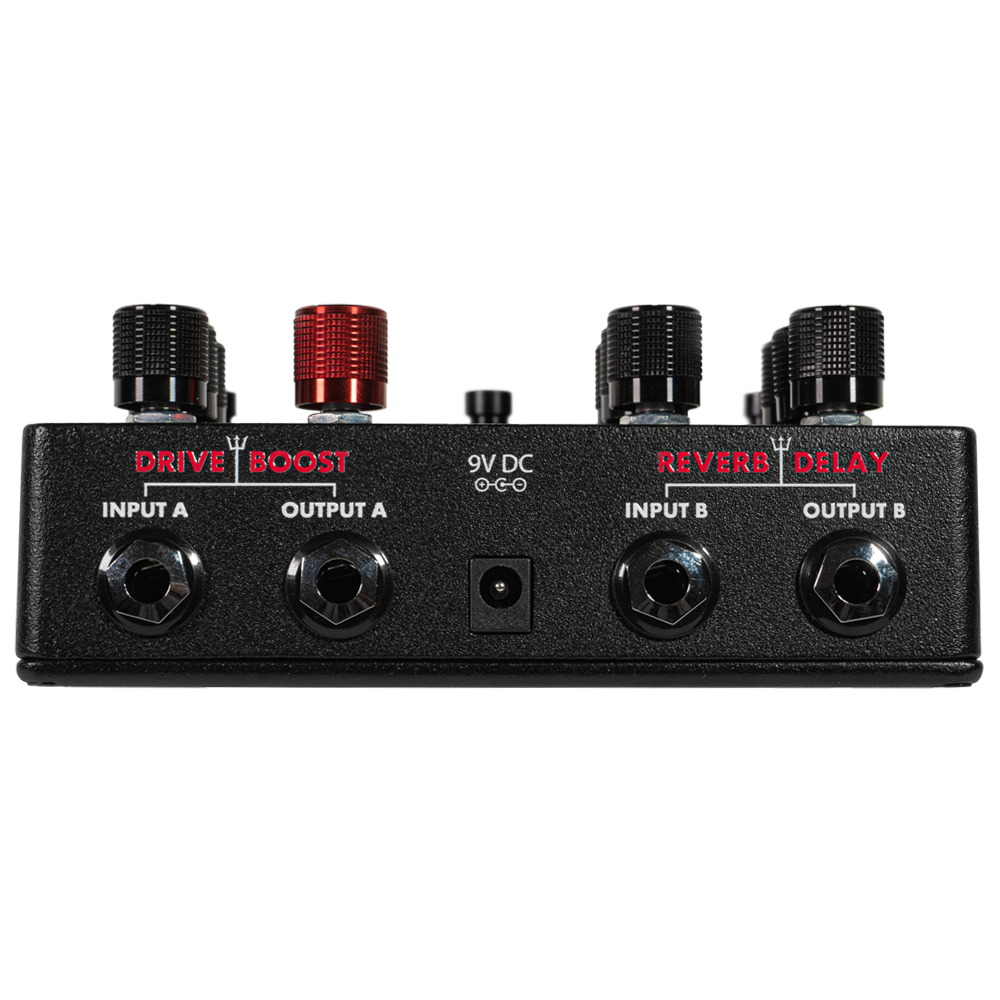

4-Cable Method: Utilize the separate IN/OUT connectors to route the Reverb and Delay through your amp's effects loop, while keeping the Drive and Boost in front. This gives you the same level of signal control and routing flexibility utilized by Jeff Loomis himself.
Technical Specifications
| Feature | Specification |
| OVERDRIVE | Type: Analog op-amp with Soft Clipping |
| Input Impedance: 260K @ 1kHz | |
| Level: Off to -20dB | |
| Tone: 10dB Boost @ 4kHz | 15dB Cut @ 4kHz | |
| Gain: Increases signal to clipping LEDs for increased distortion | |
| BOOST | Type: Analog op-amp |
| Input Impedance: 325K @ 1kHz | |
| Range: Unity to +20dB | |
| REVERB | Type: Analog signal path w/ Digital Plate Emulator |
| Controls: Level (Wet volume), Tone (Attenuates highs on wet signal), Decay (Feedback level) | |
| DELAY | Type: Analog signal path w/ Digital Repeats |
| Input Impedance: 250K @ 1kHz | |
| Range: ~50ms to ~500ms | |
| Feedback: Controls the number of repeats |
POWER NOTICE:
9VDC / 160mA Power Requirement.
No Internal Battery option.
Adapter Not Included. Requires a 9VDC Center Pin Negative fully regulated power supply (e.g., TrueTone 1 SPOT) capable of supplying at least 160mA.
Warranty
The Devil's Triad™ is built to last and comes with a standard 3-Year Warranty.
(Option available to upgrade to a LIFETIME warranty).
