Description

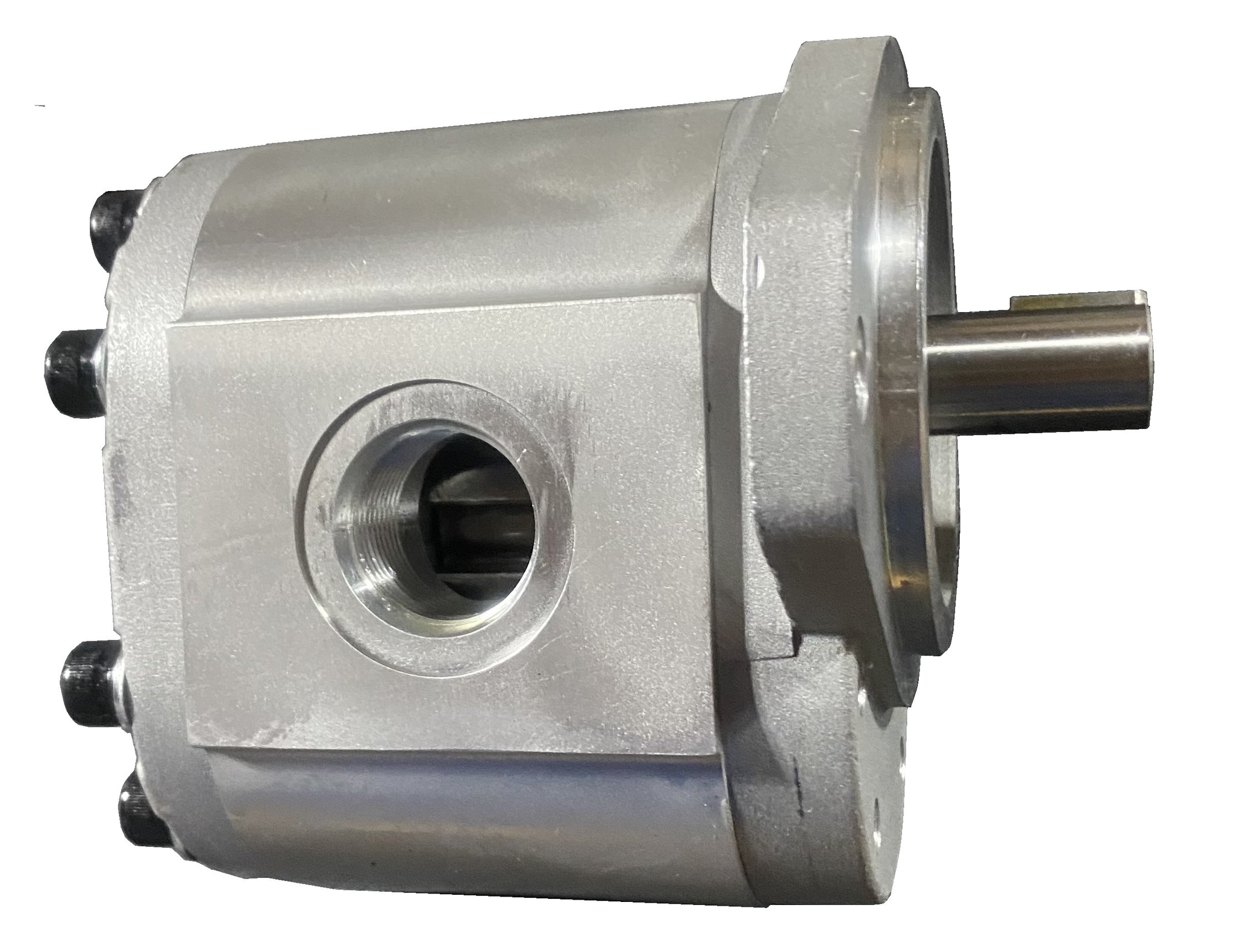

hydraulic gear pump Professional grade Hydraulic Gear Pump 2 to18gpm, 4 to 28cc/rev (.24-1.7in3/rev), 3625psi SAE B flange Clockwise rotation 9 tooth spline shaft, 3/4"For a larger view of images, right click on the image and select "Open in a new tab" Proven high quality robust design successfully operating in many high volume applications. Hydraulic Gear Pump General Data: Technical Specifications Displacement cc rev (in3 rev.) 45. 5 (2. 78) Max. Pressure Continuous, PSI (bar) 3000 (210) Peak Pressure Intermittantly, PSI (bar) 5460 (215) Inlet Pressure range, PSI (bar) 10 43. 5 (0. 7 3) Speed, Max. Continuous, rpm
Hydraulic Gear Pump General Data:
| Technical Specifications | |
| Displacement cc/rev (in3/rev.) | 45.5 (2.78) |
| Max. Pressure Continuous, PSI (bar) | 3000 (210) |
| Peak Pressure Intermittantly, PSI (bar) | 5460 (215) |
| Inlet Pressure range, PSI (bar) | 10-43.5 (0.7-3) |
| Speed, Max. Continuous, rpm | 2500 |
| Speed, Min., rpm | 600 |
| Seals | NBR |
| Temperature Range, ֯F (֯C) | -4 to 176 (-20 to 80) |
| Weight, lbs (kg) | 21 (9.5) |
| Fluid Cleanliness | 21/18/15 ISO 4406 |
| Fluid Viscocity Recommended (cSt) | 20/100 |
| Fluid Viscocity allowed for start up, cSt | 2000 |
| Mineral based VG46 oil suggested |
Options:
- Clockwise Rotation when looking at pump shaft (Counterclockwise available as an option)
Helpful calculations:
Pump flow in gpm = cc/rev. x rpm ÷ 3785 [example: 12cc/rev x 1800rpm ÷ 3785 = 5.7gpm]
Power to drive pump in HP = gpm x psi ÷ 1714 ÷ .85 [example: 5.7 gpm x 3000psi ÷ 1714 ÷ .85 = 11.7HP]
Terms:
cc/rev = displacement per revolution of pump (provided with the pump data)
rpm = revolution per minute the shaft is being rotated (based on users driving source)
gpm = output flow of pump in gallons per minute
3785 = constant value to convert cc/rev. to gpm
1714 = constant value to convert flow and pressure to HP
.85 = common efficiency value to account for mechanical and volumetric losses
High volume OEM series production available per request.
