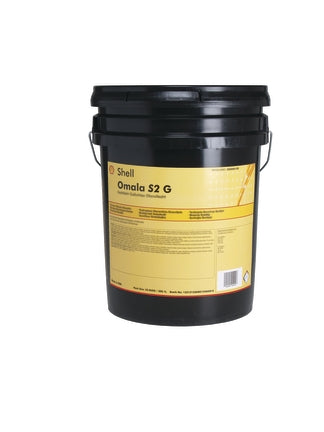

gearing shell Shell Omala S2 GX 320 Industrial Gear Oil

gearing shell Shell Omala S2 GX 320 Industrial Gear OilLubricating heavy duty industrial gears has never been this easy. With Shell Omala S2 G 320, you don't have to worry about wear, friction or corrosion because it's designed specifically for high loads under moderately extreme conditions. Created to protect steel and bronze components in industrial gearboxes, this extreme pressure Shell Omala S2 G 320 can also guard high load bearings from corrosion. It can be used in circulating and splash lubricated

Lubricating heavy-duty industrial gears has never been this easy. With Shell Omala S2 G 320, you don't have to worry about wear, friction or corrosion because it's designed specifically for high loads under moderately extreme conditions. Created to protect steel and bronze components in industrial gearboxes, this extreme-pressure Shell Omala S2 G 320 can also guard high-load bearings from corrosion. It can be used in circulating and splash-lubricated systems to reduce machine downtime and increase mechanical lifespans.

Long oil life Maintenance saving Shell Omala S2 G oils are formulated to resist thermal and chemical breakdown throughout the maintenance interval. They withstand high thermal loading and resist the formation of sludge to provide extended oil life capability, even with bulk oil temperatures of up to 100 C in certain applications. Excellent wear & corrosion protection Excellent load carrying capacity reduces gear tooth and bearing wear on both steel and bronze components. Shell Omala S2 G has excellent corrosion protection, protecting both steel and bronze components, even in the presence of contamination by water and solids. Maintaining system efficiency Shell Omala S2 G oils have excellent water separation properties, such that excess water can be drained easily from lubrication systems to help extend the life of the gears and ensure efficient lubrication of the contact areas. Water can greatly accelerate surface fatigue of gears and bearings as well as promoting ferrous corrosion on internal surfaces. Water contamination should therefore be avoided or removed as quickly as possible after the occurrence.
Main Applications

Enclosed industrial gear systems

Shell Omala S2 G oils are formulated using an effective sulphur-phosphorus additive system to provide an extreme pressure performance which allow trouble-free application in most enclosed industrial gearboxes using steel spur and helical gears.

Highly loaded gears

Shell Omala S2 G oils have an effective full extreme pressure (EP) additive system allowing them to be used in highly-loaded gear systems.

Other applications
Shell Omala S2 G oils are suitable for lubrication of bearings and other components in circulating and splash-lubricated systems.

For highly-loaded worm drives the Shell Omala series oils are recommended.
For automotive hypoid gears, the appropriate Shell Spirax Oil should be used.

Specifications, Approvals & Recommendations

• Textron Power Transmissions (David Brown) 3E
• Meets MAG Specification P-76
• US Steel 224
• AGMA EP 9005 - EO2
• ISO 12925-1 Type CKD
• DIN 51517 - Part 3 (CLP)

For a full listing of equipment approvals and recommendations, please consult your local Shell Technical Helpdesk, or the OEM Approvals website.
