guitar pedal capacitors Polyester Film Tone Capacitors .047uF 100v (5 pcs) – GuitarRepairParts.com

guitar pedal capacitors Polyester Film Tone Capacitors .047uF 100v (5 pcs) – GuitarRepairParts.com. 047 uf (. 047 mfd) polyester film capacitors. Package of 5 The . 047 cap value is commonly associated with single coil guitar pickups and commonly used with the tone circuits for Strat or Tele guitars and other manufacturers using similar pickup designs where one may want the option to remove a lot of brightness. They can also be used with other pickup types if you desire more highs cut or are attempting to have a unique and darker tone. Polyester

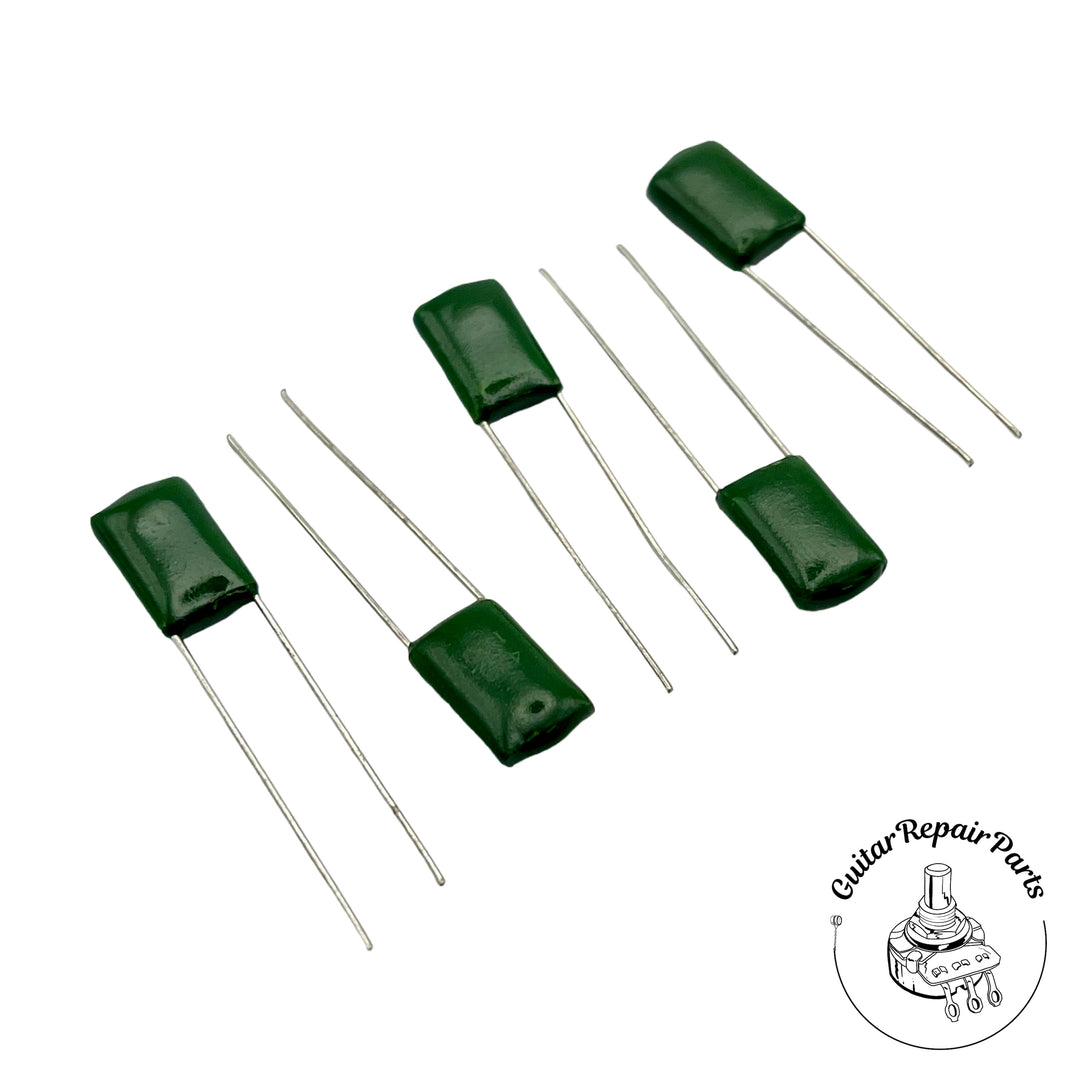

.047 uf (.047 mfd) polyester film capacitors. Package of 5

The .047 cap value is commonly associated with single coil guitar pickups and commonly used with the tone circuits for Strat® or Tele® guitars and other manufacturers using similar pickup designs where one may want the option to remove a lot of brightness. They can also be used with other pickup types if you desire more highs cut or are attempting to have a unique and darker tone.

Polyester film dielectric, aluminum foil electrode, copperply leads and epoxy resin coating in inductive type. Capacitor code "473J 100V" marked on housing.

Specifications:

• Small size, light weight and low cost
• Dissipation factor is small because the leads are directly welded to electrodes
• Epoxy resin vacuum-dipped enhances the mechanical strength, humidity resistance
• 100 volt rating
• Operating temperature range: -40°C to +85°C.
• Tolerance: +/- 10%
• Measurements: 0.3" x 0.16" x 0.45"

Professional installation is strongly recommended. Improper installation may result in damage to the product and/or instrument.
