Description
accelerator pedal vibrates ▷ ELECTRONIC FLOOR ACCELERATOR PEDAL CUMMINS WILLIAMS CONTROLS WM-526-350826 in Yuma, USAhe WM 526 Electronic Floor Pedal is designed for all commercial vehicle applications and is highly customizable. Available in kickdown and non kickdown versions to accommodate customer applications. The unit is equipped with a Hall effect non contact sensor that can be programmed for analog output and or integrated switches. The electronics are IP67 sealed and highly EMI resistant (SAE J1113). In addition, the unit can be customized with contact or

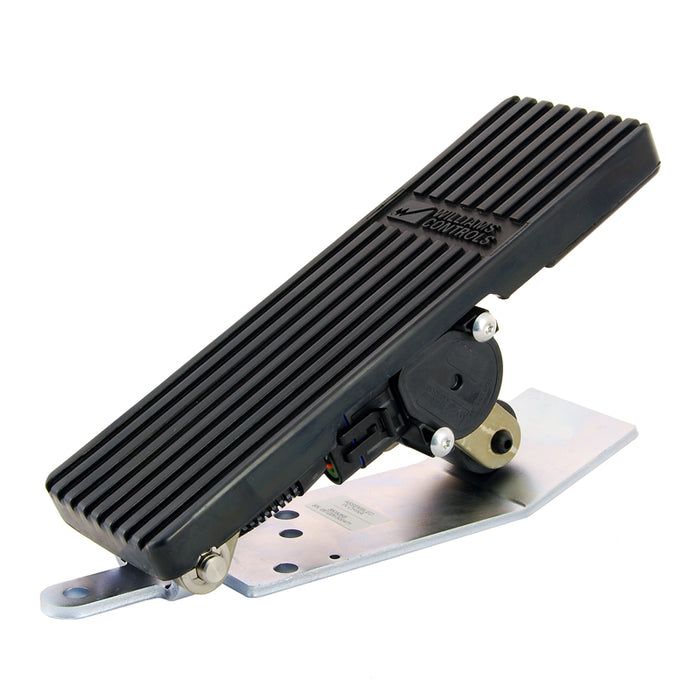

he WM-526 Electronic Floor Pedal is designed for all commercial vehicle applications and is highly customizable. Available in kickdown and non-kickdown versions to accommodate customer applications.
The unit is equipped with a Hall-effect non-contact sensor that can be programmed for analog output and/or integrated switches. The electronics are IP67 sealed and highly EMI resistant (SAE J1113). In addition, the unit can be customized with contact or PWM output sensors.
The WM-526 provides a robust design with a corrosion resistant cast aluminum treadle and a coated steel base plate. The pedal is available in three treadle angles: 28.5°, 35°, and 45°. The treadle is supplied with a rubber cover for improved foot traction.
SPECIFICATIONS PRODUCT LIFE ELECTRONICS
ELECTRICAL
PEDAL ANGLE MECHANICAL
ENVIRONMENTAL
MATERIALS
Full Travel Cycles
Seal Integrity EMI
Operating Voltage Output Signal
Degrees
Static Load Vibration
Operating Temp Range Storage Temp Range Humidity
Sand/Dust
Main Body Mounting Plate Treadle cover
10,000,000
Electronics IP67 sealed (IEC 60529) SAE J1113 Compliant
5V and 12V-24V
Dual APS, Dual PWM, APS, PWM, APS/IVS
28.5°, 35°, 45°
1500N
3 hour, 3-axis, random broadband up to 4g
-40°C to 85°C
-40°C to 85°C
95% RH for 120 hours Tested to SAE J1455
Cast Aluminum Coated Steel NBR Rubber
