9g servo metal gear SunFounder 9g Metal SF180M Digital Semi-metal Micro Servo (2 pack)
SKU: 24140670053
9g servo metal gear

9g servo metal gear SunFounder 9g Metal SF180M Digital Semi-metal Micro Servo (2 pack)

Sale price$24.35 Regular price$27.06
Save 10%

Pay in installments of $6.76 with ShopPay, AfterPay and Klarna

Shipping Estimate
USA
  • USA
  • CAN

Ships within 48 hours · Estimated delivery Jul 3 - Jul 8

Promo Codes Available:

For Your Every Summer RSVP, with Code: SUMMER15

Description

9g servo metal gear SunFounder 9g Metal SF180M Digital Semi-metal Micro Servo (2 pack)High precision semi metal gears with hard anodizing High performance digital standard servo Operating Voltage Range is 4. 8V~6. 0V. Operating travel: 1805 Suitable for helicopter, airplane, boat, robot and a variety of R C Toys Test Environment Standard Every characteristic of the inspection must be normal temperature and humidity carry out the test, temperature 255 and relative humidity 6510% of judgment made in accordance with this specification

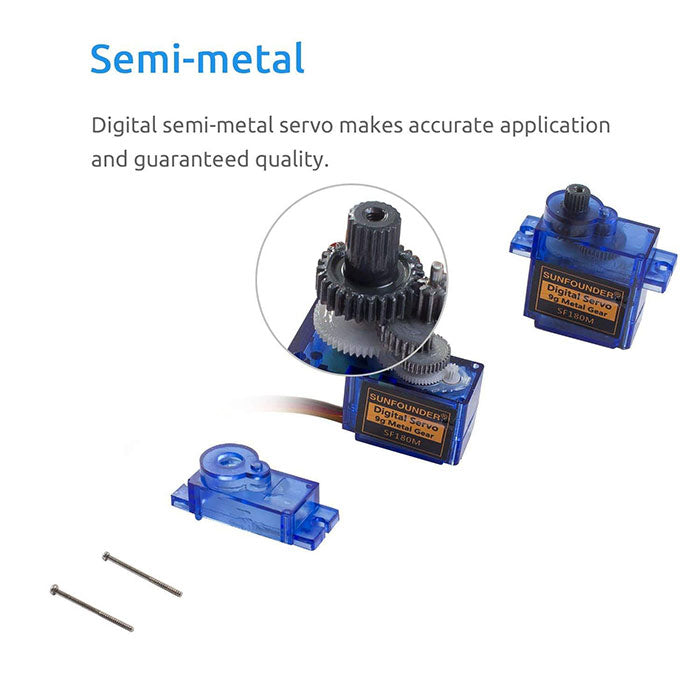

  • High-precision semi-metal gears with hard anodizing
  • High performance digital standard servo
  • Operating Voltage Range is 4.8V~6.0V.
  • Operating travel: 180°±5°
  • Suitable for helicopter, airplane, boat, robot and a variety of R/C Toys

Test Environment Standard

Every characteristic of the inspection must be normal temperature and humidity carry out the test, temperature 25±5℃ and relative humidity 65±10% of judgment made in accordance with this specification standard testing conditions.

Electrical Specification

  • Operating speed(at 4.8V no load): 0.11 Sec/60°
  • Running current(at 4.8V no load): 90 mA
  • Stall torque(at locked 4.8V): 2.5 kg-cm
  • Stall current(at locked 4.8V): 600 mA
  • Idle current(at stopped 4.8V): 3 mA
  • Running life(at no load 4.8V): 100000 times
  • Operating speed(at 6.0V no load): 0.09 Sec/60°
  • Running current(at 6.0V no load): 100 mA
  • Stall torque(at locked 6.0V): 3 kg-cm
  • Stall current(at locked 6.0V): 730 mA
  • Idle current(at stopped 6.0V): 3 mA

Note: Running current(at no load) definition is the average value when the servo running with no load.

Control Specification

  • Control system: Pulse width modification
  • Operating travel: 180°±5°
  • Neutral position: 1500 μ sec
  • Rotating direction: Clockwise(When 1000~2000μ sec)
  • Pulse width range: 750~2250 μ sec
  • Maximum travel: Approx 140 °(When 750~2250 μ sec)

Mechanical specification

  • Connector wire length: 190±5 mm
  • Limit angle: 200°±10°
  • Weight: 9 grams(without servo horn and screw)
  • Connector wire gauge: #28 AWG
  • Horn gear spline: 21T
  • Horn type: Two blades, One blade, Circle

Package List

  • SF180M Semi-metal Digital Servo Motor x 2
Shipping Notes
  • Free Standard Shipping on $100+ Orders to the USA.
  • Except Preorder products are shipped in 48 hours.
  • Delivery to the USA:
  1. Standard Shipping : 3-10 business days
  • If time is of the essence, please consider selecting expedited delivery for faster service.
Exchange/Return Notes
  • We offer a 30-day return/exchange service after receiving.
  • Final sale items are not eligible for returns or exchanges.
  • To process your return/exchange, please contact us at [email protected]
  • Please click here for more details>>> Return & Exchange Policy
