Description

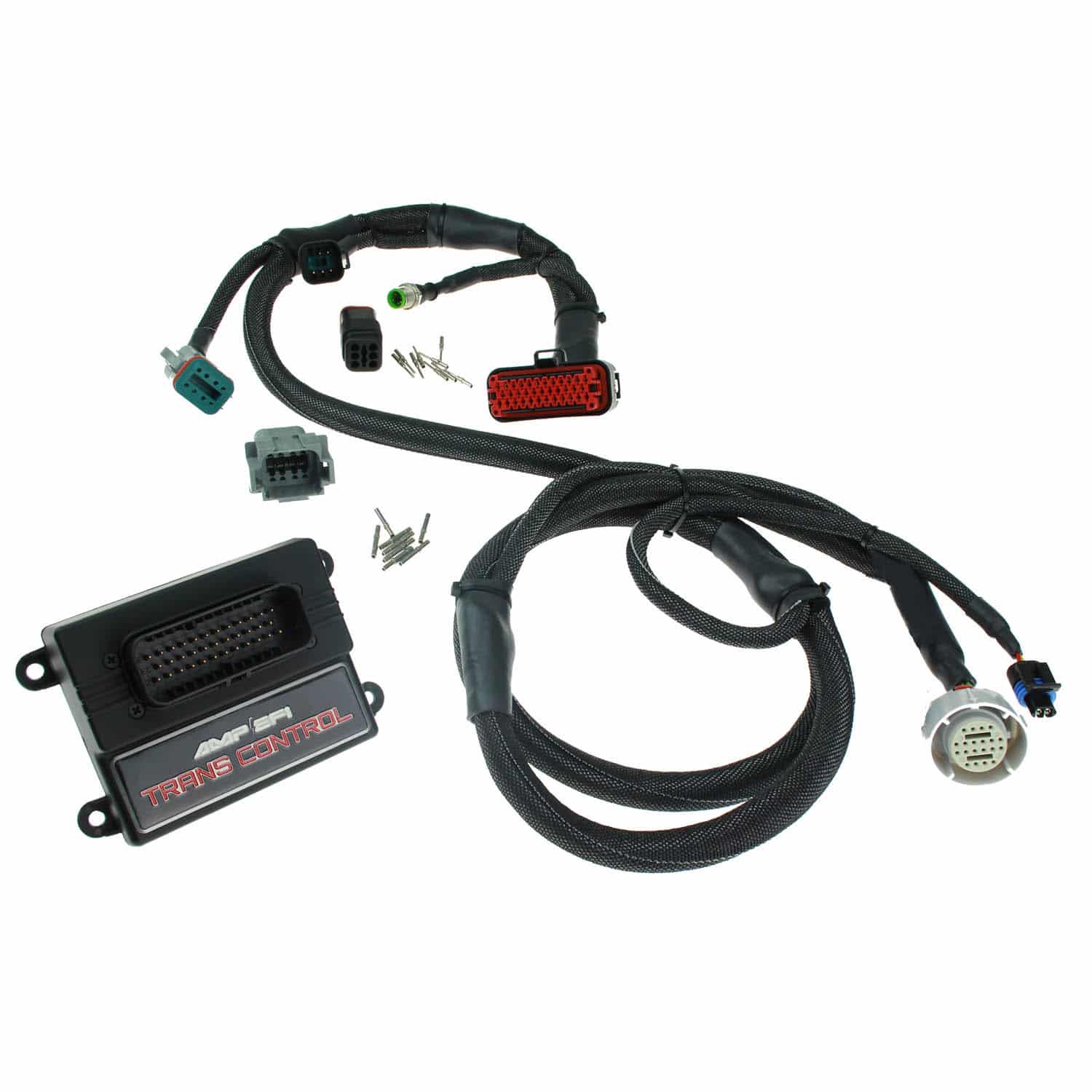

ms3 gold box boost control MicroSquirt Transmission Controller & 4L60E Harness – DIYAutoTuneEasily manage your GM 4L60E transmission with the MicroSquirt CAN Transmission Controller and 4L60E Subharness. This system offers a clean, plug and play solution when paired with MS3Pro ECUs and directly connects to our LSx drop on harnesses for quick and painless installation. The included subharness supports 4L60E transmissions with or without the LUF (Lock Up Feel) solenoid. It is ideal for GM vehicles running early 4L60E models and LS engine
Easily manage your GM 4L60E transmission with the MicroSquirt CAN Transmission Controller and 4L60E Subharness. This system offers a clean, plug-and-play solution when paired with MS3Pro ECUs and directly connects to our LSx drop-on harnesses for quick and painless installation.
The included subharness supports 4L60E transmissions with or without the LUF (Lock-Up Feel) solenoid. It is ideal for GM vehicles running early 4L60E models and LS engine swaps using MS3Pro or other MegaSquirt-based ECUs. Communication is handled over CAN bus, allowing compatibility with MS2, MicroSquirt, MS3, and MS3Pro systems.
Note: This harness does not include wiring for the input shaft speed sensor found on later 4L65E and 4L70E transmissions.
Not compatible with 2009+ 4L60E transmissions.
Key Features:
-
Plug-and-play wiring harness for 4L60E with full MicroSquirt TCU support
-
Compatible with MS3Pro 24x and 58x drop-on harnesses
-
Supports models with and without the LUF solenoid
-
CAN bus integration with MS2, MS3, or another MicroSquirt ECU
-
Pre-configured MicroSquirt Transmission Controller
-
Simple setup and tuning via TunerStudio
What’s Included:
-
MicroSquirt Transmission Controller (loaded with 4L60E firmware)
-
Fully terminated 4L60E plug-and-play wiring harness
-
6-pin black connector (power, ground, CAN)
-
8-pin gray connector (optional digital inputs)
-
18 crimp pins for custom input connections
