Description
nordvang pedal Nordvang Custom Gravity V2.5Update to the version 2. 5: TS side we have added an additional clipping diode option, so besides the 2 diode symmetrical (stock), 3 diode asymmetrical you now also have a 4 diode symmetrical clipping option. We have added a dip switch for boosting the output of the TS side. ************************ Gravity is our take on two all time favorite overdrive circuits, the K style circuit and a TS10 circuit all in one enclosure! A new dual overdrive
Update to the version 2.5: TS side - we have added an additional clipping diode option, so besides the 2-diode symmetrical (stock), 3-diode asymmetrical you now also have a 4-diode symmetrical clipping option.
- We have added a dip switch for boosting the output of the TS side.
************************
We have recreated the circuits in each pedal staying true to the original, but added switching options for additional tone shaping. We have kept both buffers that were used in the original designs in order to replicate the exact interaction between the two circuits.

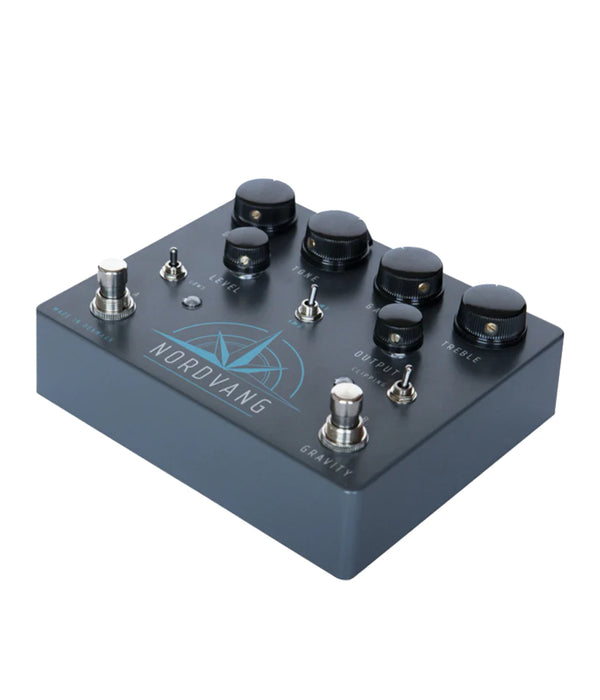

The Gravity overdrive is divided into a side A (left) and a side B (right), separated by the order toggle switch in the middle which is used to flip the internal order of the effects and hence the signal path from guitar to amp.
Side A features the TS10 circuit with external knobs for DRIVE, TONE, LEVEL and a three position toggle switch labeled LOWS. The lows switch changes the bass response of the circuit. Internally you find dip switches (clipping, clarity, brightness and output boost) that further enables you to tweak your tone.
The side B features the K-circuit with external knobs for GAIN, TREBLE, OUTPUT and a two position toggle switch labeled CLIPPING. The clipping switch toggles between a pair of germanium or schottky clipping diodes.
Both sides can be used separately or stacked.
TRS split: Besides using the two sides of Gravity in serial mode, either A->B or A<-B, the Gravity V2 can split side A & B into separate effects. The two 1/4" jacks, which in serial mode are used for signal in and out, will in split mode serve as IN+OUT for each side.
That is done via a - TRS to 2 x TS - 1/4 " jack cable.
The right side "IN" jack is IN+OUT for side B. (TIP = in, RING = out)
The left side "OUT" jack is IN+OUT for side A. (TIP = out, RING = in)
PLEASE NOTE THAT THE EXTERNAL ORDER TOGGLE SWITCH MUST BE IN UP POSITION A <- B
Features:
Side A (left)
- Replica of the TS10 audio circuit including the three transistor buffer circuit.
- RC4558 Operational Amplifier
The Gravity requires a regulated 9-volt DC power supply with standard 2.1mm jack tip negative polarity.
The max power consumption of the Gravity is 100mA (+9VDC). If operated with a power supply with insufficient current
capabilities, it will affect the performance. So make sure your +9V-DC power supply is capable of delivering 100mA.
We recommend you to use a quality power supply with isolated outputs. The Gravity does not support battery operation.
