Description

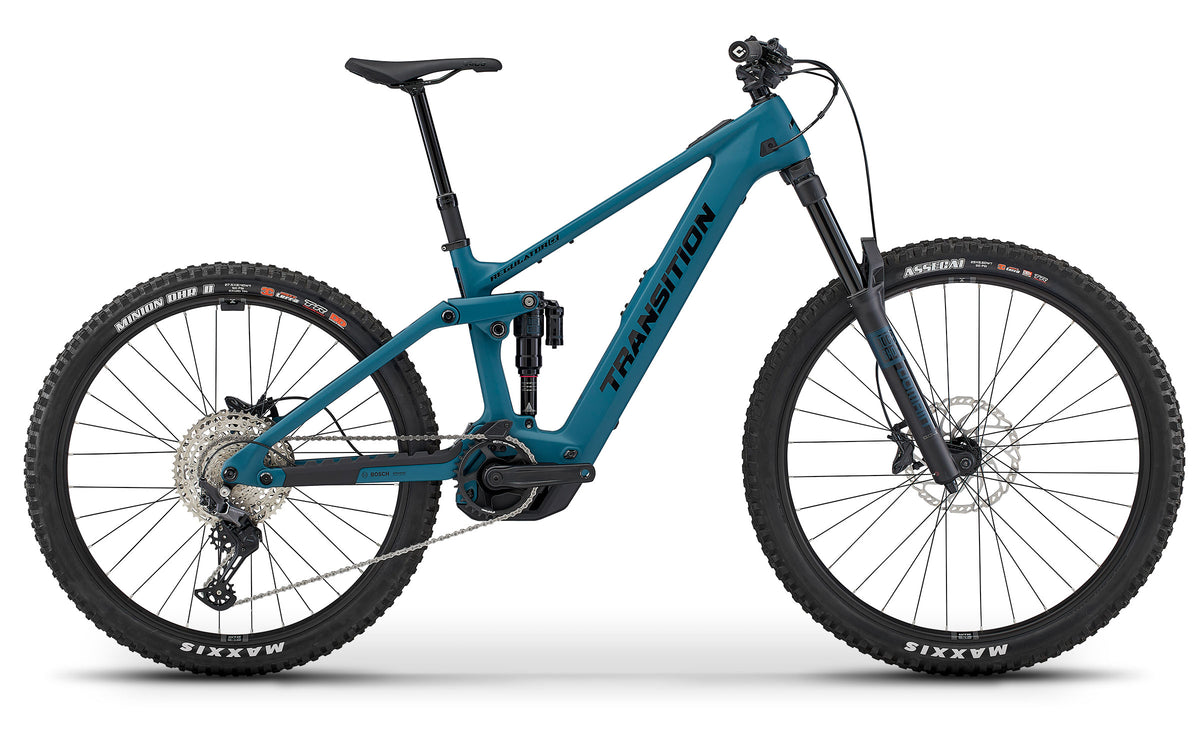

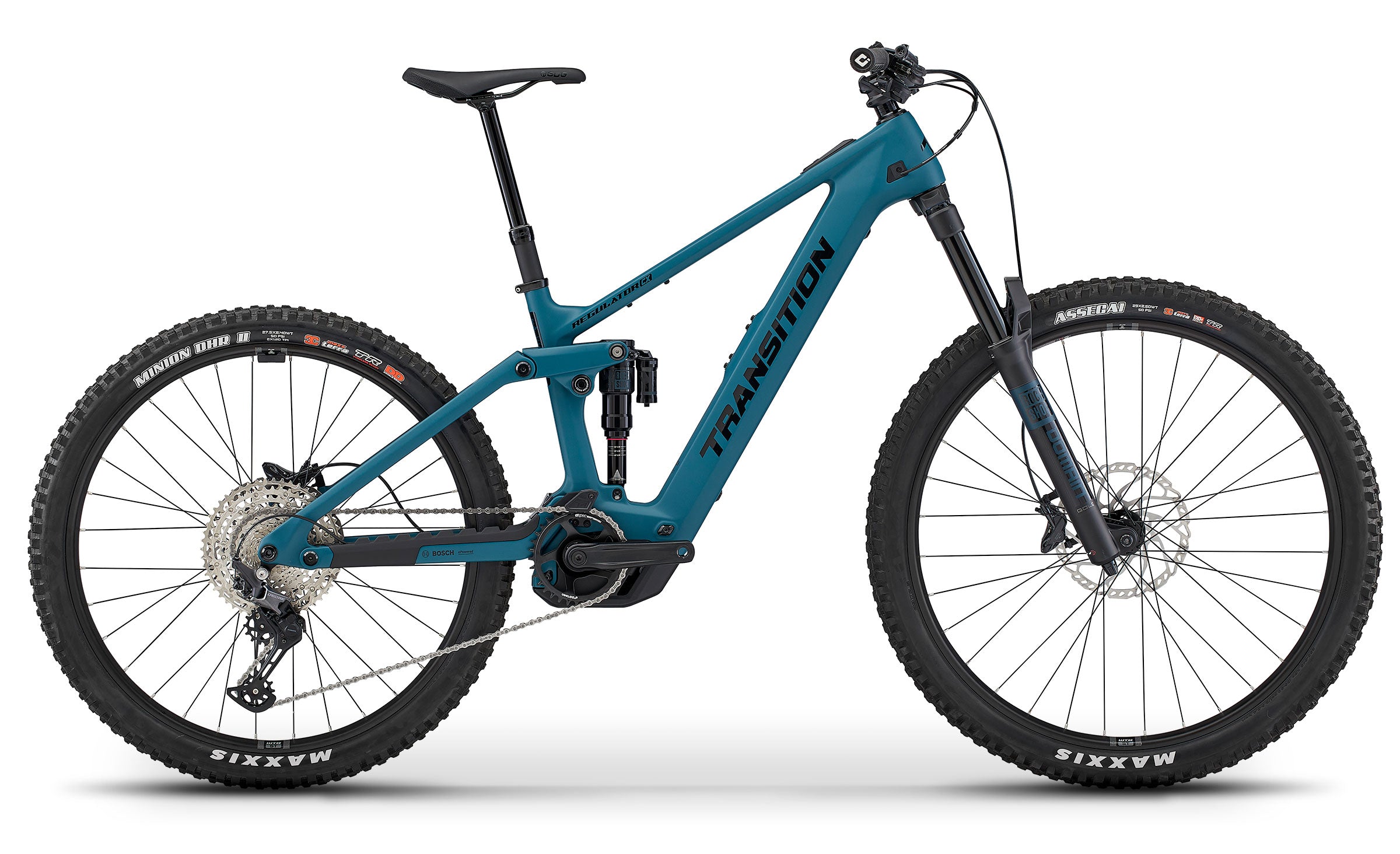

e bike mountainbike auslaufmodell Transition Regulator CX Deore, Salish Blue / MediumRegulators, mount up! The all mountain steed is here to deliver fun on every trail. The Regulator CX is our all mountain workhorse designed to provide a nimble and responsive ride with big power. No trail is too tame or gnarly for the dedicated mixed wheel platform with 150 160mm travel and geometry that promotes agility and playfulness. The Regulator will be the choice for riders looking for a chassis that excels in a variety of terrain with the
Regulators, mount up!
The all-mountain steed is here to deliver fun on every trail.
Giddyup Suspension Design
We want to make it as easy as possible to experience great rear suspension performance. The GiddyUp suspension system is designed to behave intuitively across a broad range of setup. Because, we get it, sometimes you just want to grab your bike and GiddyUp, without checking your setup.
We did this by balancing a 27% progressive leverage curve with a consistent rate of change. Anti-squat is tuned to enhance pedaling performance and acceleration. Overall chain growth is moderate and reduces after sag so the chain tension doesn't get in the way of the suspension working.
This translates to supple small bump compliance and great mid-stroke support that gradually transitions into a subtle, yet supportive end-of-stroke ramp. The amount of consistent progression is carefully optimized for both air and coil shocks. Riders are able to add or remove volume spacers in air shocks to suit their individual riding style. The Regulator has 150mm of rear wheel travel when used with the supplied 205mm x 60mm stroke shock. It is also possible to install a longer stroke shock of 205mm x 65mm to increase the rear wheel travel to 160mm.
A wide usable sag range of 27-33% allows the rider to tune the feel of the bike; from poppy and playful, to planted for plowing. Wherever you end up, you can focus on the trail without remotes, levers or knobs. Just grab your bike and GiddyUp.
Frame Specifications
| REAR TRAVEL: | 150mm (Compatible with 160mm) |
| FRONT TRAVEL: | 160mm |
| WHEEL SIZE: | 29" Front / 27.5" Rear |
| SIZES: | SM, MD, LG, XL |
| FRAME BEARINGS: | 2x 6903, 2x 6902, 6x 6802, 2x 6900 |
| FORK AXLE TO CROWN: | 579mm |
| FORK OFFSET: | 44mm |
| REAR SHOCK SIZE: | 205mm x 60mm (compatible with 205 x 65mm) |
| SHOCK HARDWARE: | Trunnion Mount Top / 30mm x 8mm Bottom |
| HEADSET (TOP): | 44mm Zero Stack |
| HEADSET (BOTTOM): | 56mm Zero Stack |
| BB SHELL: | 73mm BSA Threaded |
| CHAINLINE: | 55mm |
| REAR BRAKE MOUNT: | 180mm Post Mount, Max Rotor Size 223mm |
| REAR AXLE: | Transition Axle For UDH, 12mm x 148mm Spacing |
| ISCG TABS: | ISCG05 |
| SEATPOST DIAMETER: | 31.6mm |
| SEAT CLAMP: | Carbon: 37.0mm |
| MAX SEATPOST INSERTION: | Small 235mm | Medium 260mm | Large 300mm | X-Large 330mm |
| MAX CHAINRING SIZE: | 34T Standard Single Ring |
| MAX TIRE SIZE: | 27.5” x 2.6" (*see FAQ) |
| REAR SHOCK SAG: | 150mm/60mm: 16-20mm (26-32%) |
Build Specifications
| BUILD | Carbon Deore |
| FRAME | Regulator CX Carbon 150mm |
| WHEEL SIZE | Mixed |
| DRIVE UNIT | Bosch Performance Line CX (BDU38) |
| BATTERY | Bosch PowerTube (600wh) |
| DISPLAY | Bosch System Controller |
| ASSIST SWITCH | Bosch Wireless Mini Remote |
| REAR SHOCK | RockShox SuperDeluxe Base (205x60mm) |
| FORK | RockShox Domain Gold RC (160mm) |
| HEADSET | FSA No.57E |
| STEM | RaceFace Aefect R (40mm) |
| HANDLEBAR | RaceFace Chester 35 SM (780x20) MD/LG/XL (780x35) |
| GRIPS | ODI Elite Flow Lock-On |
| SADDLE | SDG Bel Air 3 |
| SEATPOST | SDG Tellis SM (150mm) MD (170mm) LG (200mm) XL (230mm) |
| BRAKES | Shimano Deore M6120 4 Piston |
| ROTORS | Shimano RT66 (203mm) |
| SHIFTER | Shimano Deore M6100 iSpec EV |
| DERAILLEUR | Shimano Deore M6100 SGS 12sp |
| CASSETTE | Shimano Deore M6100 (10-51t) |
| CHAIN | Shimano Deore M6100 |
| CRANK | Samox EC39 (150mm) |
| CHAINRING | E*Thirteen Helix Core Direct Mount (34t) |
| CHAINGUIDE | Transition Integrated Top Guide |
| RIMS | WTB ST i30 |
| SPOKES | Pillar Straight Gauge |
| HUBS | Novatech D791SB/D902SB |
| TIRE/FRONT | Maxxis Assegai 3C EXO+ (2.5) |
| TIRE/REAR | Maxxis Minion DHRII 3C DD (2.4) |
| INCLUDED | Bosch Charger Tubeless Valves & Sealant |
| COLOR OPTIONS | Salish Sea Blue Glacier White |
| WEIGHT | 49.1 lbs / 22.25 kg (Size MD) |
