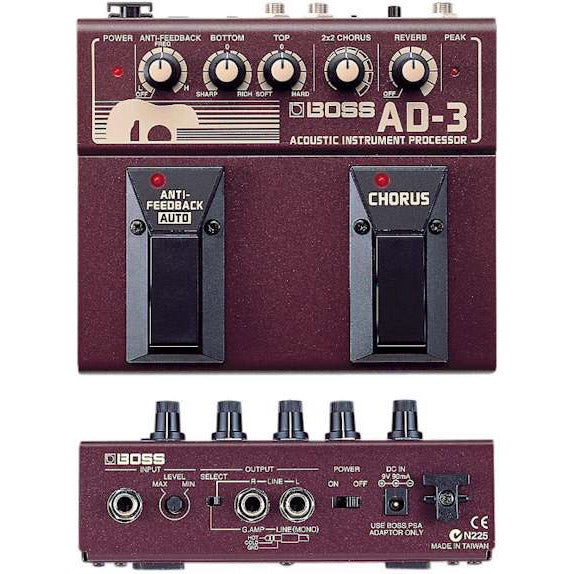

boss ad 3 pedal BOSS AD-3 Acoustic Instrument Processor

boss ad 3 pedal BOSS AD-3 Acoustic Instrument ProcessorDeveloped specifically for live performance, the AD 3 delivers a warmer, richer sound through precise impedance matching, built in high quality tonal controls, reverb and chorus, and an automatic feedback eliminator. A Bi Stereo Chorus with split frequency processing (low and high) delivers a natural, smooth chorus effect optimized for acoustic guitar. The AD 3s high quality reverb exhibits a clear, deep effect specially tuned for acoustic guitar.

Developed specifically for live performance, the AD-3 delivers a warmer, richer sound through precise impedance matching, built-in high-quality tonal controls, reverb and chorus, and an automatic feedback eliminator.

A Bi-Stereo Chorus with split-frequency processing (low and high) delivers a natural, smooth chorus effect optimized for acoustic guitar. The AD-3’s high-quality reverb exhibits a clear, deep effect specially tuned for acoustic guitar. Special Bottom and Top controls provide variable tonal shaping to eliminate “dry” sound from piezo pickups, while letting you add rich, resonant lows and brilliant highs at will.

• AD Conversion 20-bit Delta-Sigma Modulation
• DA Conversion 20-bit Delta-Sigma Modulation
• Sampling Frequency 44.1 kHz
• Nominal Input Level -10 dBm
• Input Impedance 4.7 MΩ
• Nominal Output Level Output: -10 dBm into 10 kΩ, Balanced output: -10 dBm into 600 Ω
• Controls Knobs (Level, Anti-feedback, Bottom, Top, 2x2 Chorus, Reverb),
• Switches (Anti-feedback Auto Pedal, Chorus Pedal, Power, Output Select)
• Indicators Power, Peak, Anti-feedback Auto, Chorus
• Connectors Input (1/4"), Outputs (L, R; 1/4" TRS), DC In
• Power Supply DC 9V Dry Batteries (LR6 (AA) x 6), AC Adaptor
• Power Consumption 90 mA
• Dimensions 170 (W) x 156 (D) x 70 (H) mm (6-3/4" x 6-3/16" x 2-13/16")
• Weight (incl. batteries) 1 kg (2 lbs. 4 oz.)
• Accessories Dry Batteries (LR6 (AA) x 6)
