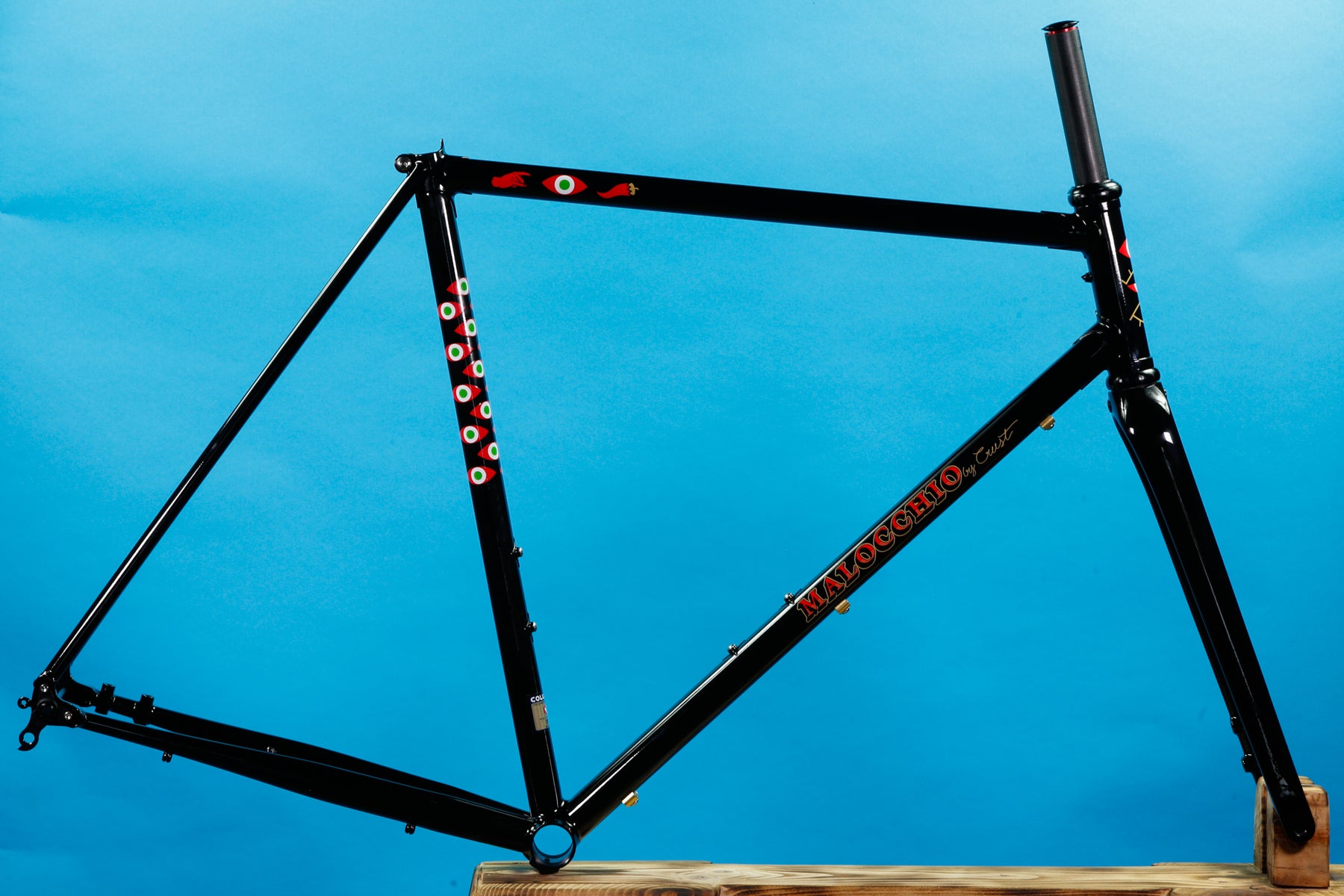

This is the Disc Brake/ Carbon Fork version of our Neoclassical Road frame The Malocchio. Here's what Matt had to say about the original, all steel rim brake Malocchio:

"The Malocchio was dreamed up and designed with our friend Travers Martin. It is a classical delight, like listening to the slow smooth sounds of the 3 Tenors on a breezy moon lit summer night. Don't let that smoothness fool you, the Malocchio can be an absolute rocket ship if you want it to be. It's top of the line Columbus Spirit tube set offers the ride characteristics and reliability you should expect out of a modern steel road frame."

Build Notes:

VERY IMPORTANT: Our carbon fork that Matt designed for this bike has an integrated crown race for the headset. If you or "your mechanic" try to hammer on a crown race and damage/ destroy the fork, that is on you.

Unlike it's rim brake counterpart, the Malocchio Disc is designed around a 700c wheel throughout the size range.

Recommended tire size is 38c (ish) or 35c-ish with fenders.

Set it up with a single, double, or even a triple ring crank.

Flat Mount Brakes Front and Rear with a 160mm Max Rotor Size Front and Rear

Most Calipers should bolt up by using around a 37 to 42mm Bolt up front and around a 32 to 37mm Bolt in the rear. It will vary caliper to caliper. This is not a guarantee, just a size range to help you figure it out. You'll have to apply some common sense and maybe some trial and error here. You want more than two threads holding your caliper on, but some caliper bolt holes are shallow, so a long bolt wont work.

ED Coated to help protect it from the elements and inhibit internal corrosion. This doesn't mean you're free to ride it into the ocean though.

Thru Axles and Fork Compression Plug are included.

Max Stack Under Stem= 40mm and you will need at least 5mm over top of the stem for the compression plug

HEADSET NOT INCLUDED

Details:

Handmade in Taiwan using Columbus Spirit Tubing

Lugged Construction with Fillet Brazed Bottom Bracket Junctions and an all Carbon Fork

Color- Black or Fruity Pedals Speckle'd

Sizes- Extra Small 51cm | Small 53cm | Medium 55cm | Large 57cm | Extra Large 61cm

Head Tube Diameter- 1 1/8" (Threadless Steerer) with 30mm 45° Integrated Crown Race (Our 24 Palms Headset or White Industries Headsets are a couple good and easy options)

Steerer Tube Length- 300mm

Bottom Bracket- 68mm English (BSA) Threaded

Fork Spacing- 12x100 Thru Axle

Rear End Spacing- 12x142mm Thru Axle

Front Axle Thread Pitch & Length- 1.5x124mm

Rear Axle Thread Pitch & Length- 1.5x163mm

Seat Post Diameter- 27.2mm

Weight- 55cm Frame= 2.07kg (4lbs 9oz) Fork (Uncut Steerer)= 473g (1lb 1oz)
