Description

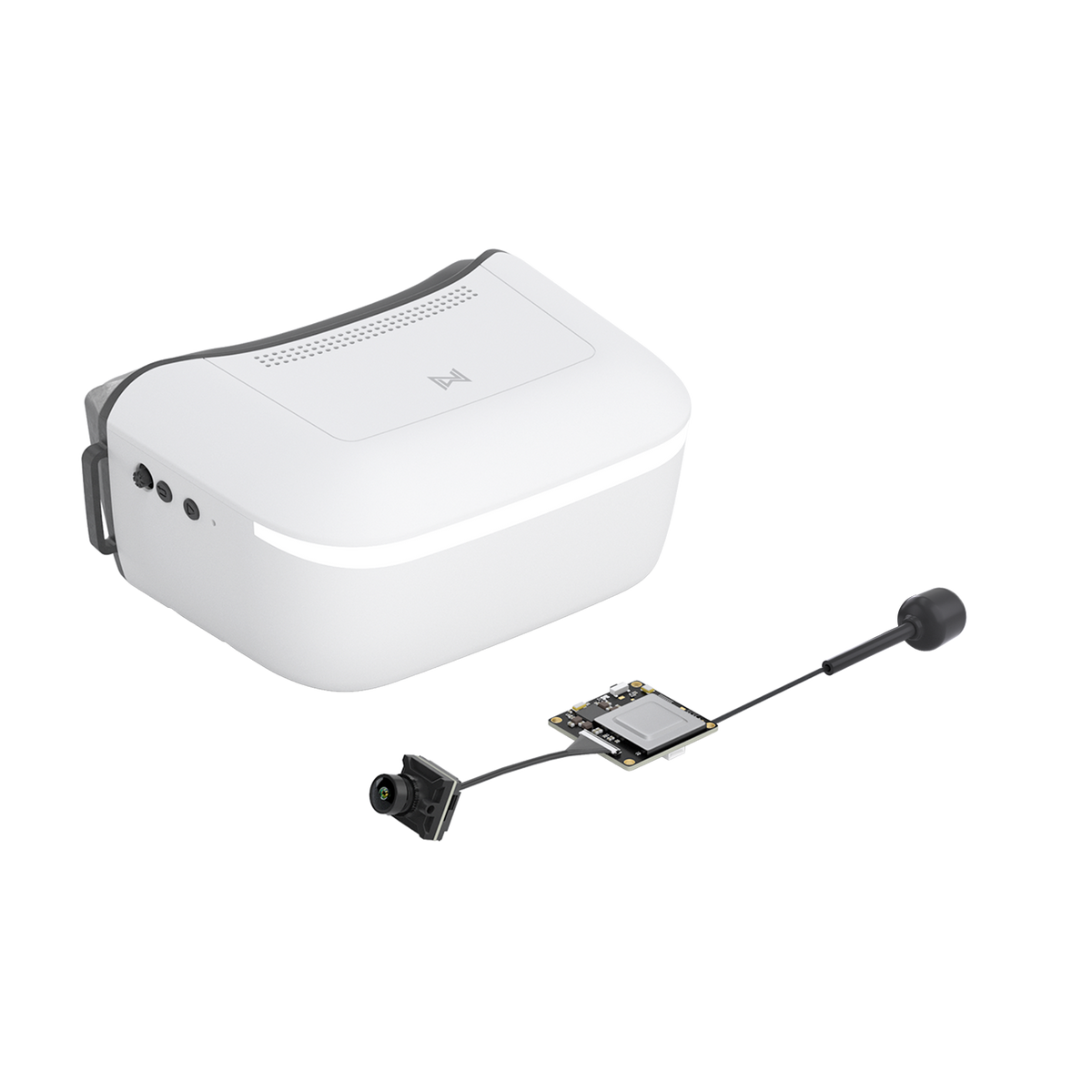

dji goggles hdmi CADDXFPV Walksnail Avatar HD Goggles L w/ Mini 1s Kit – RCDroneOverview Walksnail Avatar HD Goggles L FPV goggles are a single screen digital HD FPV goggle solution designed to provide an accessible entry into the Avatar HD System, combining HD video transmission with built in head tracking. Key Features Head tracking supported via an in house full stack image transmission head tracking system with an integrated nine axis gyroscope; can be used with a compatible gimbal to control camera pan tilt. Digital video
Overview
Walksnail Avatar HD Goggles L FPV goggles are a single-screen digital HD FPV goggle solution designed to provide an accessible entry into the Avatar HD System, combining HD video transmission with built-in head tracking.
Key Features
- Head tracking supported via an in-house full-stack image transmission head tracking system with an integrated nine-axis gyroscope; can be used with a compatible gimbal to control camera pan/tilt.
- Digital video link using H.265 encoding with transmission resolutions of 1080p60fps and 720p60fps.
- 4.5-inch LCD display with 1920*1080/60Hz screen resolution and 58° FOV.
- Built-in Micro SD card slot for onboard recording; SD card support up to 256G.
- Directional antenna specification: 4.9dBi average gain, LHCP polarization.
- PPM signal output to radio controllers via the goggles’ 3.5mm headphone TX connector (for output onward to the vehicle/aircraft).
- Wide power input: 6V-25.2V (2S-6S).
- Detachable lens design to support different vision needs (nearsighted, farsighted, or blue light-blocking lenses).
- Front cover light bar design.
- Comfort-focused face mask made with polyurethane foam to reduce light leakage.
- Compatible with current Walksnail VTX models (as stated).
Specifications
| Model | Avatar HD Goggles L |
| System | Avatar HD System |
| Communication Frequency | 5.725-5.850GHz |
| Transmitter Power (EIRP) | FCC: <30dBm; CE: <14dBm; SRRC: <20dBm; MIC: <25dBm |
| Channel | 8 |
| Transmission Resolution | 1080p60fps, 720p60fps |
| Code Rate | Max 50 Mbps |
| Min. Latency | Average 32ms |
| Screen Size | 4.5 Inch |
| Screen Resolution | 1920*1080/60Hz |
| Screen Material | LCD |
| FOV | 58° |
| Gyro | Nine-axis gyroscope |
| Average Gain | 4.9dBi |
| Polarization | LHCP |
| Transmission Distance | >4km |
| Power Input | 6V-25.2V (2S-6S) |
| SD card | Support 256G |
| I/O Interface | 4Pin 3.5mm Plug, DC5.5*2.1mm, Micro SD Card Slot |
| Net weight | 350±10g |
| Size | 148.8mm; 158.8mm; 120mm; 105mm; 72mm |
For compatibility and setup questions (VTX pairing, head tracking, PPM output, recording), contact [email protected] or visit https://rcdrone.top/.
What’s Included
- Straight DC5.5-XT60 Power Cord x1
- Storage Bag x1
- Lens Cleaning Cloth x1
Applications
- FPV drones
- RC cars
- Fixed-wing FPV
- Indoor and outdoor FPV flying (system dependent)
Video
Details
A compact, single-screen entry into the Walksnail Avatar HD digital FPV system with a clean front light bar design.
Designed for FPV across drones, RC cars, and fixed-wing platforms when paired with a compatible Avatar HD video transmitter.
Wide-range DC power input supports common 2S–6S battery setups for flexible field use.
Record flights directly to a Micro SD card for easy playback and sharing.
Built-in head tracking support uses an integrated gyro system for compatible pan/tilt control.
A detachable lens design helps accommodate different vision needs, including corrective or blue-light lenses.
Works with current Walksnail Avatar HD VTX models for a complete digital FPV link.
Detailed sizing helps confirm fit and packing space before you build out your FPV kit.
