Description
pedal embrague 4077719C92Description: Clutch Pedal Assembly HX515Condition: NewBrand: InternationalPart Number: 4077719C92, 4077719C91 Bill Of Materials Name Quantity Part Number Support, Clutch Pedal 1 4077719C92 Support, Clutch Pedal 1 4065098C3 Pin, Knurled 1 4082441C1 Ring, Snap Or Retaining, External E Ring 1 4082485C1 Extension, Clip L Type 1 164797R1 Spring, Pedal Return 302 SS 1 3676474C1 Nut M8 1 30382R1 Bolt, Flange Head M8 X 25 3 31055R1 Support, Clutch Pedal

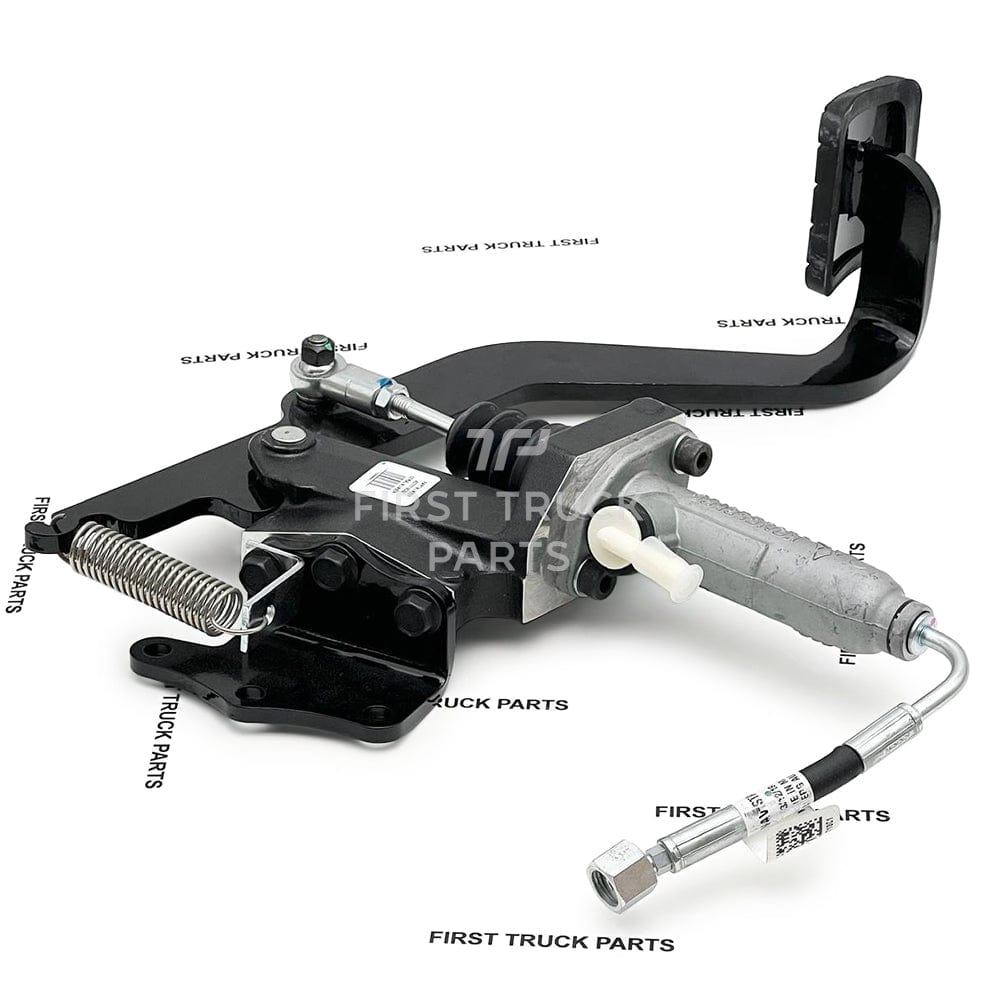

Description: Clutch Pedal Assembly HX515
Condition: New
Brand: International®
Part Number: 4077719C92, 4077719C91
Bill Of Materials
| Name | Quantity | Part Number |
|---|---|---|
| Support, Clutch Pedal | 1 | 4077719C92 |
| Support, Clutch Pedal | 1 | 4065098C3 |
| Pin, Knurled | 1 | 4082441C1 |
| Ring, Snap Or Retaining, External E-Ring | 1 | 4082485C1 |
| Extension, Clip L Type | 1 | 164797R1 |
| Spring, Pedal Return 302 SS | 1 | 3676474C1 |
| Nut M8 | 1 | 30382R1 |
| Bolt, Flange Head M8 X 25 | 3 | 31055R1 |
| Support, Clutch Pedal Bracket | 1 | 4065053C1 |
| Cylinder, Clutch Operated, Master Cylinder Assembly | 1 | 4068589C91 |
| Washer, Flat M8 | 4 | 934675R1 |
| Screw, Socket Head M8 X 25MM | 2 | 40253R1 |
| Hose, Flex Hydraulic Clutch, Master Cylinder Hose | 1 | 4074713C1 |
| Clip, Lock | 1 | 6117965C1 |
| Pedal, Clutch, Pedal Assembly | 1 | 4068001C93 |
Manufacturer information
Navistar® is a proud manufacturer of some of the widely used trucks, yellow school buses, defense vehicles, and engines. It was recognized as the first truck and engine manufacturer to be certified by the EPA for meeting 2007 standards for hydrocarbons and particulate matter. But the company's global portfolio is not limited to its line of vehicles and engines—it also carries high-quality replacement parts and accessories to keep all these working in top condition at all times. From hose fuel, bolts, plugs, rivets, and bearings to flashers, incandescent lamps, camshaft brake, gasket injector, and spring door locks, Navistar has also got you covered.
