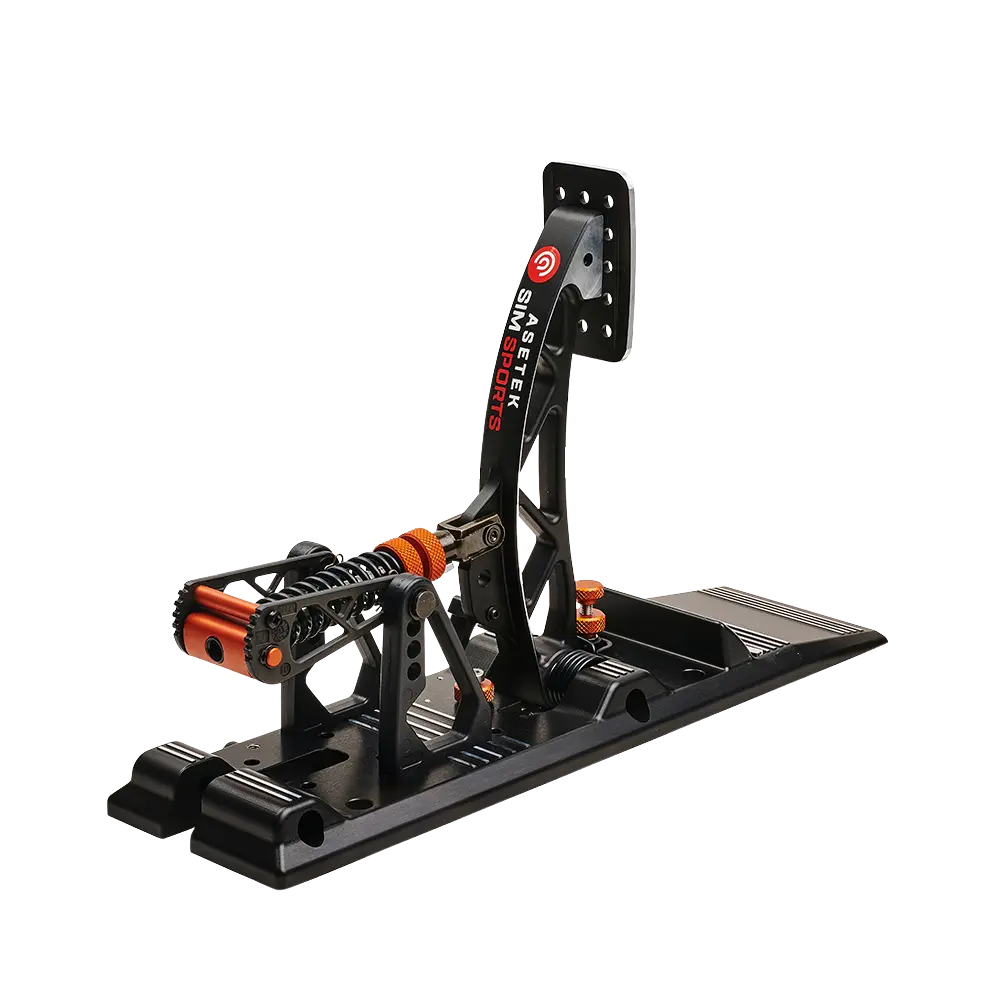

asetek invicta pedals Invicta Pedals Clutch

asetek invicta pedals Invicta Pedals ClutchTechnical data: Radical and minimalist Danish industrial design (Registered Community Design No. 009148265 0001 0002 0003) Magnetic, wireless 16 bit Hall CPS (clutch position sensor) with no mechanical wear and no maintenance Play free pedal arm made of die cast aluminum with integrated long life ball bearings and bronze bushing at the pivot point of the fork head Pedal arm designed for 200 kg force and a burst pressure of up to 700 kg! Four

Technical data:

• Radical and minimalist Danish industrial design (Registered Community Design No. 009148265-0001/0002/0003)
• Magnetic, wireless 16-bit Hall CPS (clutch position sensor) with no mechanical wear and no maintenance
• Play-free pedal arm made of die-cast aluminum with integrated long-life ball bearings and bronze bushing at the pivot point of the fork head
• Pedal arm designed for 200 kg force and a burst pressure of up to 700 kg!
• Four mechanical pedal curve settings
• Adjusting the spring force
• For attachment to Invicta Pedals Brake & Gas and Forte Pedals Brake & Gas
• Both Invicta and Forte pedal plates are included
• Adjustable pedal stop
• Adjustable suspension travel
• Made in Denmark
• Sustainable manufacturing with 100% reuse of waste material on site
• High-quality die-cast pedal base with integrated heel support and RGB LED that can be adjusted, dimmed or turned off completely via the RaceHub™ software
• The clutch can be calibrated via the RaceHub software
• The upper and lower dead zone of the clutch as well as the bite point can be adjusted via the RaceHub software
• All adjustable mechanical features are colored orange by default
• If you purchase the Invicta™ clutch separately, you will need to use the Allen keys included with your purchase of the Invicta Brake & Throttle Pedals or the Forte Brake & Throttle Pedals, or purchase them separately at your local hardware store.

Dimensions:

• Depth, width and height: 406 mm x 115 mm x 271 mm
• Weight: 1.6kg
