Description

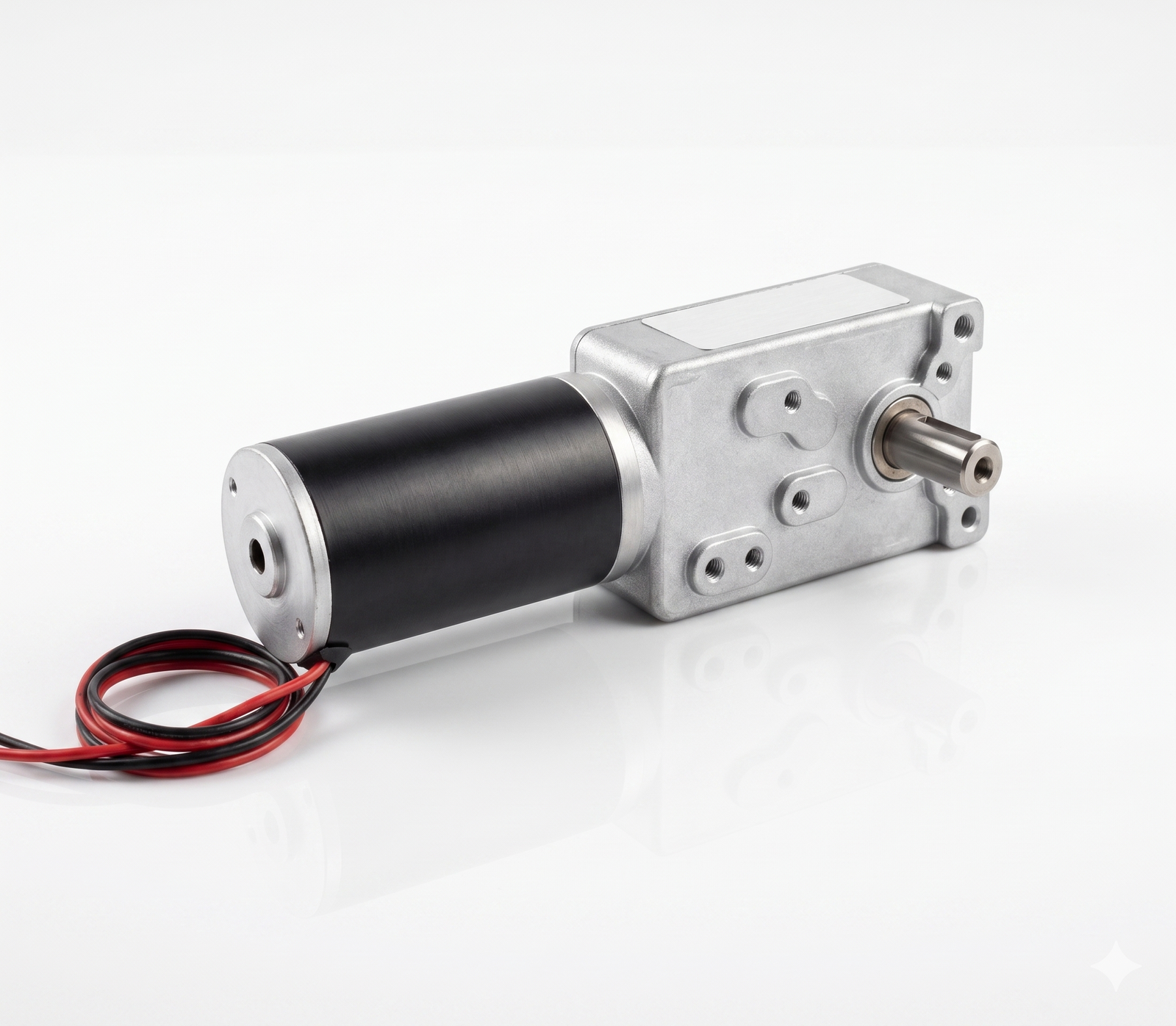

gear actuator Medium (FA-GM-82-12-48)Heavy Duty High Torque Rotary Actuators offers torque ranging from 30 Kg cm to 280 Kg cm (2. 9 N m 28 N m); Speeds range from 33 RPM to 113 RPM. These Heavy Duty High Torque Rotary Actuators come in 2 model options. A medium torque offering up to 30 Kg cm at its maximum efficiency with a speed of 113 RPM; and an even higher torque model offering 280 Kg cm at its stall point, with a speed of 33 RPM at the stall point. These Rotary Actuators are ideal
Heavy Duty High Torque Rotary Actuators offers torque ranging from 30 Kg/cm to 280 Kg/cm (2.9 N/m - 28 N/m); Speeds range from 33 RPM to 113 RPM.
These Heavy-Duty High Torque Rotary Actuators come in 2 model options. A medium torque offering up to 30 Kg/cm at its maximum efficiency with a speed of 113 RPM; and an even higher torque model offering 280 Kg/cm at its stall point, with a speed of 33 RPM at the stall point.
These Rotary Actuators are ideal for applications that need to move something with high weight/force requirements at a good amount of speed. Add external limit switches to your application to control the end-points.
Working temperature: -10℃ to +50℃
IP rating: IP40 (dust protection only)
Welding temperature: ≤380℃ ≤3 seconds.
Downloads
Dimensions:
Dimensions are the same for all gear ratio Rotary Actuators.
Specifications:
Medium Torque Rotary Actuator FA-GM-82-12-48:
|
SKU FA-GM-82-12-48 |
VOLTAGE |
AMPS |
INPUT POWER (WATTS) |
TORQUE (KG-CM) |
RPM |
OUTPUT POWER (WATTS) |
EFFICIENCY |
|
NO LOAD |
12.05 |
1.772 |
21.35 |
0.00 |
136.8 |
0.00 |
0.00 |
|
AT MAX EFFICIENCY |
11.87 |
7.928 |
94.11 |
29.58 |
113.1 |
14.35 |
36.5 |
|
OUTPUT POWER |
11.55 |
19.09 |
220.6 |
83.22 |
70.1 |
59.86 |
27.1 |
|
STALL |
11.04 |
37.26 |
411.2 |
170.52 |
0 |
0 |
0 |
High Torque Rotary Actuator FA-GM-82-12-96:
|
SKU FA-GM-82-12-96 |
VOLTAGE |
AMPS |
INPUT POWER (WATTS) |
TORQUE (KG-CM) |
RPM |
OUTPUT POWER (WATTS) |
EFFICIENCY |
|
NO LOAD |
12.05 |
1.869 |
22.49 |
0.00 |
66.8 |
0.00 |
0.00 |
|
AT MAX EFFICIENCY |
11.87 |
8.083 |
95.68 |
49.96 |
55.0 |
28.29 |
15.1 |
|
OUTPUT POWER |
11.55 |
19.51 |
224.1 |
142.04 |
33.4 |
48.71 |
17.11 |
|
STALL |
11.04 |
37.13 |
406.0 |
283.99 |
0 |
0 |
0 |
