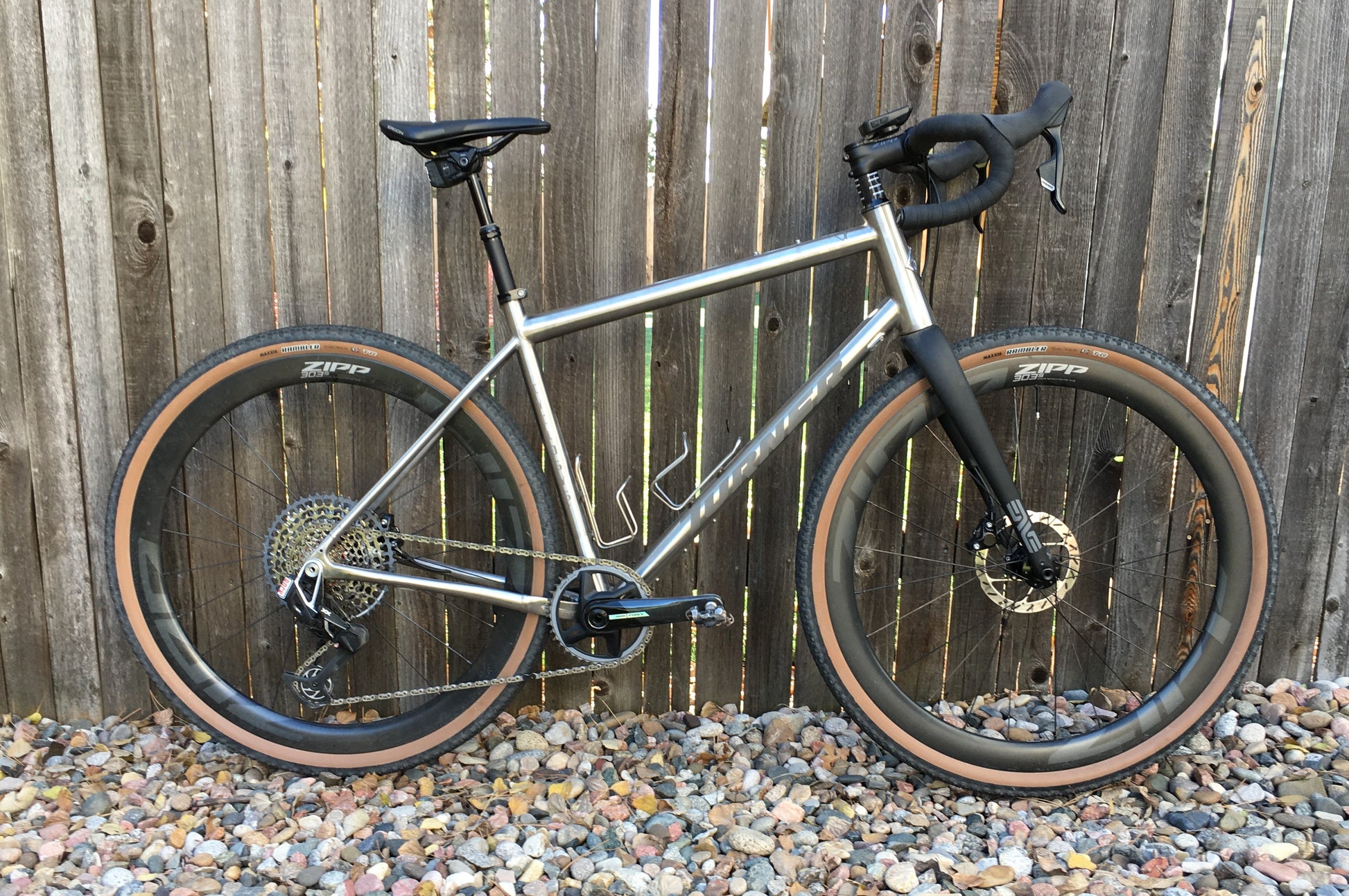

titanium gravel bike australia Cyclosys Ti

titanium gravel bike australia Cyclosys TiStandard Features Included in Price: ENVE Adventure fork Cane Creek headset Logo seat post clamp, 7075 axle, forged UDH Assorted cable routing hardware 700x56 tire clearance Frame & Construction Material: Double butted top, down, and seat tubes; single butted chainstays Chainstays: Radically tapered with massive BB junction for maximum stiffness Seat Tube: Custom shaped for added stiffness near the bottom bracket Precision Engineering Head Tube: CNC

Standard Features

Included in Price:

- ENVE Adventure fork
 -Cane Creek headset
 -Logo seat post clamp, 7075 axle, forged UDH
 -Assorted cable routing hardware
- 700x56 tire clearance

Frame & Construction

• Material: Double-butted top, down, and seat tubes; single-butted chainstays
• Chainstays: Radically tapered with massive BB junction for maximum stiffness
• Seat Tube: Custom-shaped for added stiffness near the bottom bracket

Precision Engineering

• Head Tube: CNC tapered, size-specific, internally relieved for weight savings
• Bottom Bracket: Threaded T47x68mm, large junction for added stiffness
• Dropouts: 3D printed for Universal Derailleur Hanger and 160mm flat mount caliper bolts
• Internal Cable Routing: Supports mechanical & electronic shifting, 1x or 2x drivetrains, and 2X with 27.2mm dropper

Mounting & Compatibility

• 3 Bottle Mounts: Seat tube, down tube, under downtube triple  (all welded for durability)
• Top Tube Bosses: Securely welded lunch box mounts
• Rear Triangle: Stealth threaded fender or rack mounts

Premium Finishing

• Matte Polished: Easy to maintain with Scotch-Brite pad
• Etched Graphics: Long-lasting, corrosion-proof design
• Bolt-On Head Badge & Full Stainless Steel Hardware

Technical Specifications

• Rear Hub: 142x12mm
• Bottom Bracket: Threaded 47mm x  68mm wide
• Seat Post: 27.2mm for added compliance and dropper post
• Derailleur Clamp: 31.8mm
• Seatpost Clamp diameter: 31.8
• Headset Bearings: Integrated (Top: 42mm x 45/45, Bottom: 52mm x 45/35)
• Tire Clearance: 29x2.2"

If you have any questions about frame geometry or drivetrain compatibility, feel free to contact [email protected]

Specifications subject to change without notice.
