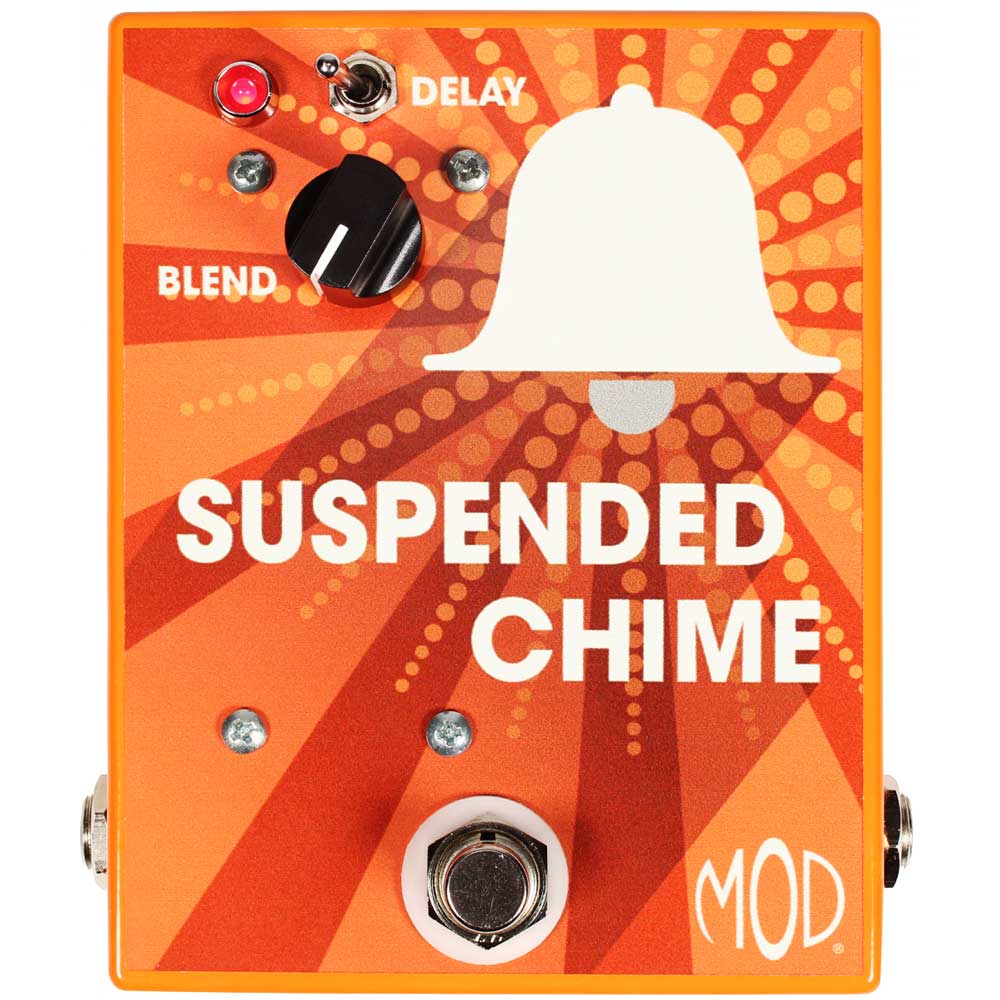

The Mod® Electronics Suspended Chime has two powerful effects in one pedal - chorus and chorus/delay. The Suspended Chime features a blend knob which allows you to go from subtle to lush chorus effect in either set up.

Using the toggle switch, you can add a 190 millisecond delay to the chorus introducing special depth to your tone. Varying the dry/wet mix can fatten your rhythms or produce a shimmering 12-string sound.

The Suspended Chime kit comes equipped with an LED indicator and industry standard 9 volt center negative power jack.

MOD® Kits are designed to give both novice and experienced musicians the opportunity to build their own amps and effects pedals. All kits come with easy to follow instructions and use point to point wiring. Pre-drilled enclosure and all parts are included. All you need to provide are hand tools, a soldering iron and solder. All effects pedals operate on a 9V battery.
