Description

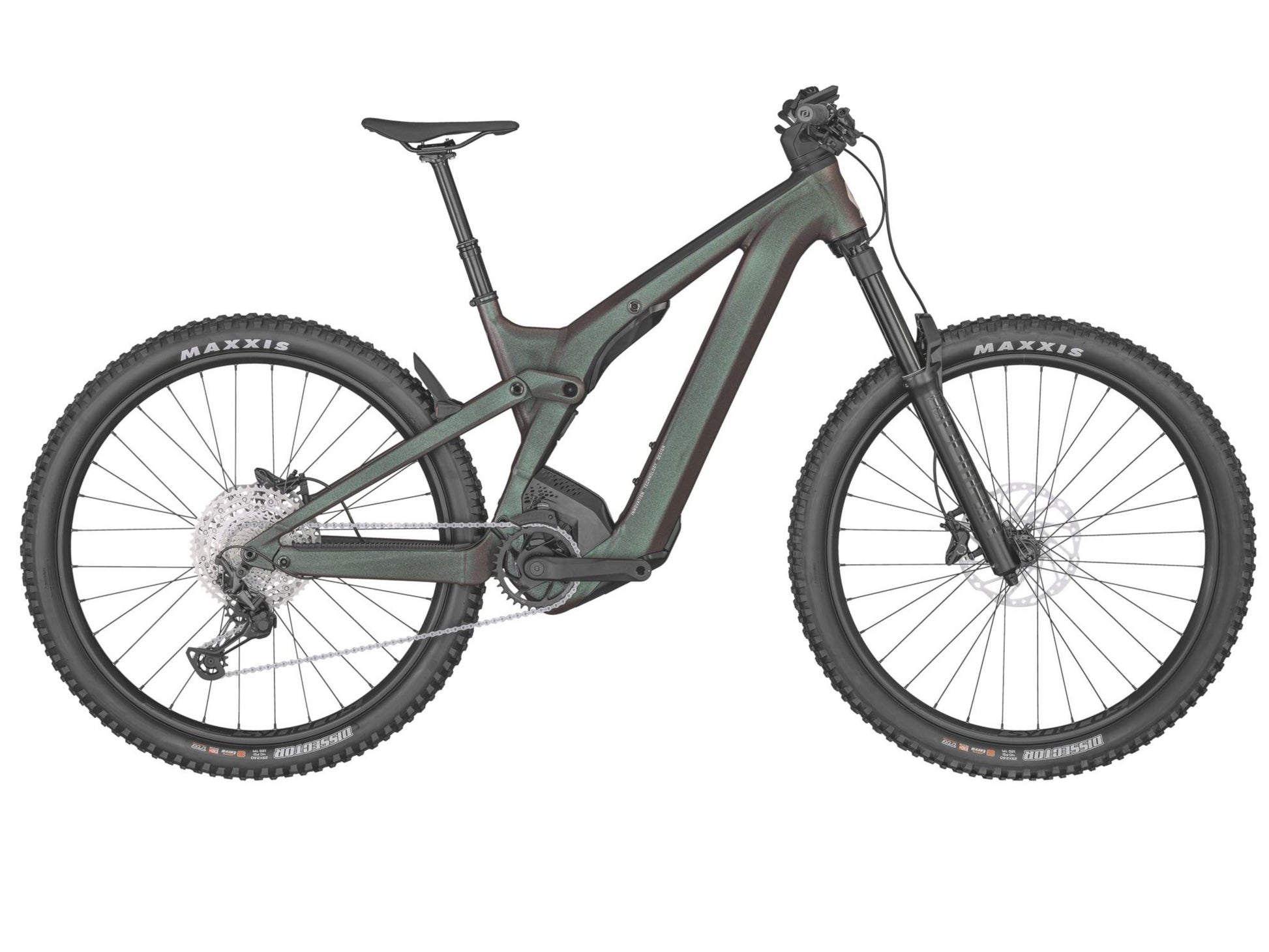

scott e mountainbike 2020 Scott Patron eRide 920The Full Scoop on the Scott Patron eRide 920 Description Motor System Components Extras Geometry The all new Patron eRIDE 920 designed for all day trail riding. Supreme integration and progressive geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a stellar experience up and down the mountain, time and time again. Patron eRIDE boss the trails. Motor Bosch Performance CX EU: 25kmh INT:
The Full Scoop on the Scott Patron eRide 920
-
-
Motor Bosch Performance CX
EU: 25kmh / INT: 20mphBattery PowerTube 750Wh Display Bosch LED Remote & Kiox 300 Charger 4A Charger -
Frame Alloy Frame & Link, Integrated cable Fork RockShox Domain Air
15x110mm QR axle / 1.8" Tapered Steerer
Reb. Adj. / 2 Modes / Lockout / 160mm travel / E-BikeRear Shock FOX Float EVOL eRIDE Trunnion
3 modes / Lockout-Trail-Descend
DPS / Reb. Adj.
Travel 160mm / 205x60mmFront Brake Shimano BR-MT520 4 Piston Rear Brake Shimano BR-MT520 4 Piston Rear Derailleur Shimano XT 12 speed
Shift Levers Shimano SL-M6100 Chain Shimano CN-M6100 Cassette Shimano CS-M6100 / 10-51 T Crankset FSA CK-745 165mm / 34T Chain Ring FSA WB604 / 34T / DM / Steel Chain Guard Spec not provided Rims Syncros MD30 / 32H / 30mm / Pin Joint
Tubeless readyFront Hub Formula CL-811 / 15x110mm Rear Hub Formula ECT-1481 / Boost 148x12mm Front Tire Maxxis Dissector 29x2.6"
120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx TerraRear Tire Maxxis Dissector 29x2.6"
120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx TerraHandlebar Syncros Hixon 1.5 / Alloy 7050D.B.
12mm rise / 9° / 780mm
Syncros Pro lock-on gripsStem Syncros AM2.0/ 6061 Alloy
31.8mm / 4° / 1 1/8Headset Acros / 1.8"
ZS66 OD74 / integr. CableGrips Spec not provided Saddle Syncros Tofino 1.5 Regular
Titanium railsSeatpost Syncros Duncan Dropper Post 2.5
31.6mm / S size 125mm / M & L size 150mm / XL size 170mm -
Pedals Not applicable Front Light Not applicable Rear Light Not applicable Kickstand Not applicable Rear Carrier Not applicable Fenders Not applicable Bell Not applicable Lock Not applicable Mirror Not applicable -
S M L XL HEAD TUBE ANGLE A 64.5 ° 65.0 ° 65.0 ° 65.0 ° HEAD TUBE LENGTH B 4.7 IN 4.9 IN 5.3 IN 5.7 IN TOP TUBE HORIZONTAL C 22.8 IN 23.4 IN 24.6 IN 25.8 IN STANDOVER HEIGHT D 30.2 IN 30.2 IN 30.2 IN 30.2 IN BB OFFSET E -1.2 IN -1.2 IN -1.2 IN -1.2 IN BB HEIGHT F 13.7 IN 13.7 IN 13.7 IN 13.7 IN WHEEL BASE G 48.1 IN 48.5 IN 49.8 IN 51.0 IN BB CENTER TO TOPTUBE CENTER H - - - - BB CENTER TO TOP OF SEATTUBE I 16.2 IN 17.3 IN 18.5 IN 19.7 IN SEAT ANGLE J 77.0 ° 76.9 ° 76.9 ° 76.8 ° CHAINSTAY K 17.9 IN 17.9 IN 17.9 IN 17.9 IN REACH L 17.0 IN 17.6 IN 18.6 IN 19.7 IN STACK M 25.0 IN 25.3 IN 25.6 IN 26.0 IN STEM LENGTH N 2.0 IN 2.0 IN 2.4 IN 2.4 IN TRAIL O 5.2 IN 5.1 IN 5.1 IN 5.1 IN FORK LENGTH P 22.3 IN 22.3 IN 22.3 IN 22.3 IN MAXIMUM SEATPOST INSERTION Q 9.6 IN 10.4 IN 11.8 IN 12.6 IN CRANK LENGTH R 6.5 IN 6.5 IN 6.5 IN 6.5 IN
