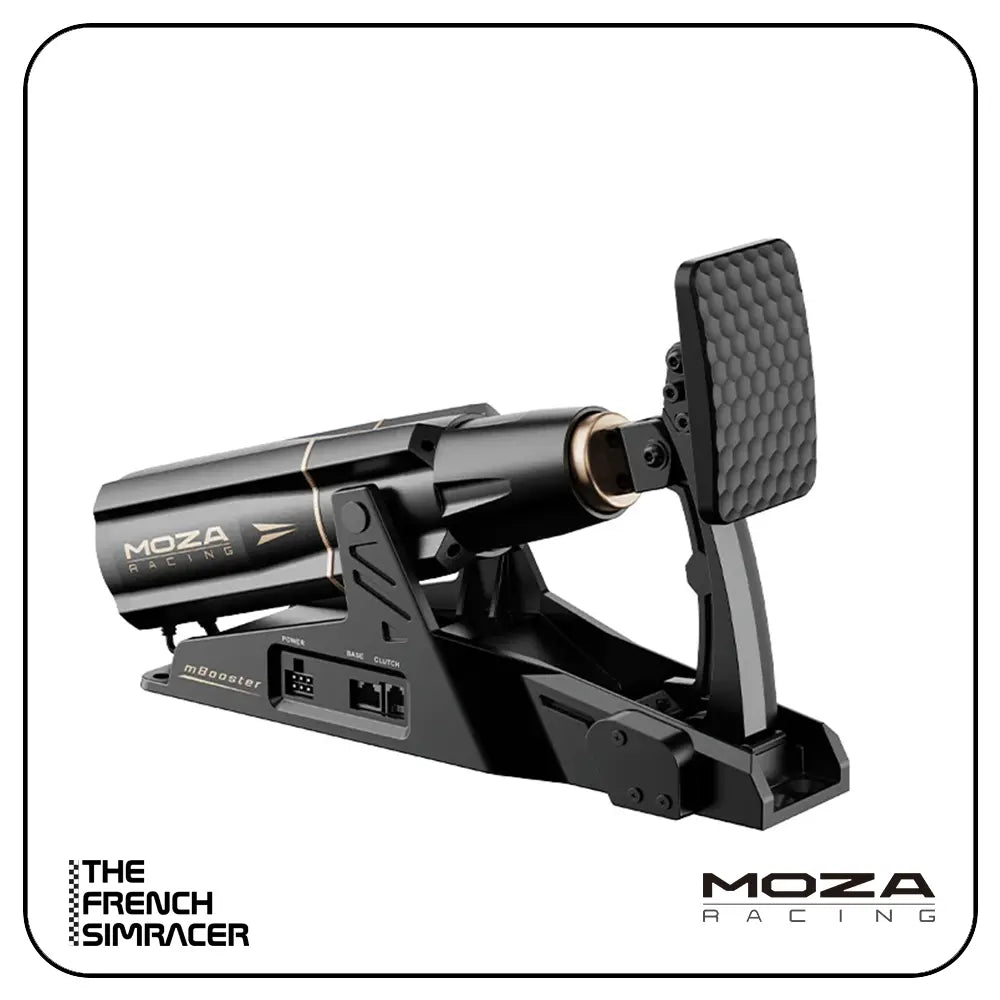

sim racing active pedal MOZA mBooster Active Pedal
SKU: 90108193037
sim racing active pedal

sim racing active pedal MOZA mBooster Active Pedal

Sale price$18.49 Regular price$20.54
Save 10%

Pay in installments of $5.13 with ShopPay, AfterPay and Klarna

Shipping Estimate
USA
  • USA
  • CAN

Ships within 48 hours · Estimated delivery Jul 2 - Jul 7

Promo Codes Available:

For Your Every Summer RSVP, with Code: SUMMER15

Description

sim racing active pedal MOZA mBooster Active PedalMOZA mBooster Active Pedal Force Feedback Active Sim Racing Pedal The MOZA mBooster Active Pedal brings active force feedback directly to your sim racing pedal setup. Instead of relying only on passive springs and elastomers, it uses a high torque servo motor and ball screw system to reproduce dynamic pedal feedback in real time from ABS lockup and traction control pulses to engine vibration, G force effects and road surface feel. the mBooster

MOZA mBooster Active Pedal – Force Feedback Active Sim Racing Pedal



The MOZA mBooster Active Pedal brings active force feedback directly to your sim racing pedal setup. Instead of relying only on passive springs and elastomers, it uses a high-torque servo motor and ball screw system to reproduce dynamic pedal feedback in real time — from ABS lockup and traction control pulses to engine vibration, G-force effects and road surface feel.

the mBooster combines dual 200 kg load cell sensors, a 15-bit angle sensor and a 21-bit high-resolution magnetic encoder for precise input detection with no dead zone. Pedal behaviour can be adjusted in MOZA Pit House, with software presets and custom tuning for rebound, travel, damping, friction and pedal mode.

Key Features

  • Active force feedback pedal — high-torque servo motor and ball screw system for real-time pedal resistance and vibration effects
  • Telemetry-based feedback — ABS lockup, traction control, engine vibration, G-force and road-surface effects
  • Dual 200 kg load cell sensors — precise pressure detection for braking inputs
  • 15-bit angle sensor + 21-bit magnetic encoder — high-resolution position tracking and consistent response
  • Configurable as throttle, brake or clutch — mode selection and performance tuning via MOZA Pit House
  • 44 dB operation — sealed rail-free mechanical structure
  • Aerospace aluminium alloy body — lightweight, rigid and durable construction
  • Biomimetic curved pedal face — shaped to follow the arch of the foot

Technical Specifications

  • Body material: aluminium alloy
  • Pressure sensor range: 0–200 kg
  • Brake sensing: load cell + angle sensor
  • Angle sensor resolution: 15-bit / 32,768 PPR
  • Magnetic encoder: 21-bit high resolution
  • Peak Power: 270 W
  • Input voltage: 110–220 V AC to 48 V DC
  • Travel adjustment: 0–25°
  • Pedal-face angle adjustment: 0–15°
  • Software: MOZA Pit House
  • Platform: PC

Installation and Setup

  • cockpit / aluminium-profile mounting with supplied hardware, including M6 and M8 screws depending on the plate and pedal position.
  • The pedal face angle is adjusted with 4 mm hex wrenches from the accessory kit.
  • MOZA Pit House lets users apply the official mBooster preset or adjust pedal travel and force to their preference.
  • connection either to a MOZA base via RJ45 or directly to the PC via USB, depending on setup.

Compatibility and Notes

  • Compatible with MOZA CRP2 Throttle and Clutch.
  • CRP2 users need the mBooster Extension Plate for optimal mounting; sold separately.
  • PC only.
  • Use a rigid pedal deck or cockpit: the device has electric moving parts and can produce sudden pushing, pulling or vibration movement.
