low profile fpv goggles Eachine EV100 Analog FPV Goggles Dual Antennas Low Profile
SKU: 54390990654
low profile fpv goggles

low profile fpv goggles Eachine EV100 Analog FPV Goggles Dual Antennas Low Profile

Sale price$19.87 Regular price$22.08
Save 10%

Pay in installments of $5.52 with ShopPay, AfterPay and Klarna

Shipping Estimate
USA
  • USA
  • CAN

Ships within 48 hours · Estimated delivery Jul 3 - Jul 8

Promo Codes Available:

For Your Every Summer RSVP, with Code: SUMMER15

Description

low profile fpv goggles Eachine EV100 Analog FPV Goggles Dual Antennas Low ProfileEachine EV100 FPV Goggles 720x540 72 Channel Dual Antennas Fan WHITE BLACK Description Item Name : EV100 Size : 165mm*76mm*30mm Weight : 221g(with battery 57g and antenna 13g) Package Weight : 400g Display Resolution : 720*540 FOV : 28 diagonal IPD : 58 68mm Ratio : 4: 3 Focal length adjusting: under 400 degree of myopia and hyporopia 150 degree Specification Frequency : 5. 8G 5333Mhz 5945Mhz Sensitivity : <= 93dB Antenna Impedance : 50 Antenna Gain :

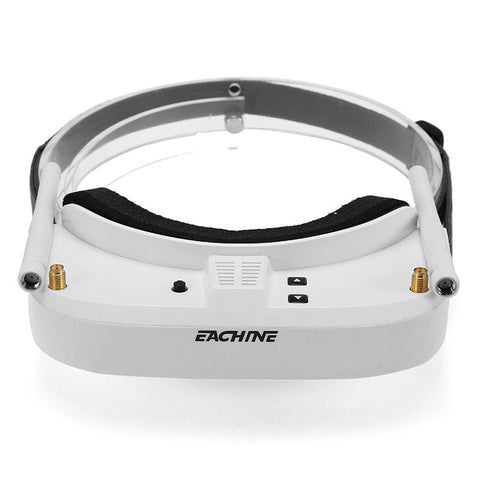

Eachine EV100 FPV Goggles 720x540 72 Channel Dual Antennas Fan WHITE BLACK

Description

  • Item Name : EV100
  • Size : 165mm*76mm*30mm
  • Weight : 221g(with battery 57g and antenna 13g)
  • Package Weight : 400g






Display

  • Resolution  : 720*540
  • FOV : 28° diagonal
  • IPD : 58-68mm
  • Ratio : 4:3
  • Focal length adjusting:  under 400 degree of myopia and hyporopia 150 degree



Specification

  • Frequency : 5.8G 5333Mhz-5945Mhz
  • Sensitivity : <=-93dB
  • Antenna Impedance : 50Ω
  • Antenna Gain : 3dBi
  • Antenna Connector : RP-SMA
  • Video Formate : NTSC/PAL
  • Support AV IN/OUT
  • Support Focal Length/Brightness/Contrast Adjustment
  • Suport Firmware Upgrading
  • Power Input : 7.4V
  • Low Voltage : 6.8V
  • Battery : 2S 7.4V 1000mAh (not included)
  • Charging : USB Cable(not included)
  • Working Temp. : -10℃-+40℃


Get 2x 18650 Battery Here: Panasonic 18650 Battery



Features

Support AV Input and Output
Support External HDMI to AV Module
Support External DVR module
Single receiver with Dual Antennas, enhance the reception and stable performance.
With Fan, can defog the glasses for good visual experience.
Adjustable focal length,allows pilots under 400 degree myopia view directly via naked eye
Adjustable IPD 58~68mm
Auto Search function, can auto search all frequencies and select the channel of stongest signal.
Has 3 Racing Modes : 4/6/8 pilots. 60-80MHz interval between adjacent channels greatly decrease interference.
Has Debug Mode, requires a corresponding VTX which support pitmode and extra frequency 5300MHz


Package Included

  • 1x Eachine EV100 5.8G 72CH FPV Goggles
  • 1x 18650 Battery case (not include battery)
  • 2x RP-SMA 3dBi Antenna
  • 1x User Manual

    Shipping Notes
    • Free Standard Shipping on $100+ Orders to the USA.
    • Except Preorder products are shipped in 48 hours.
    • Delivery to the USA:
    1. Standard Shipping : 3-10 business days
    • If time is of the essence, please consider selecting expedited delivery for faster service.
    Exchange/Return Notes
    • We offer a 30-day return/exchange service after receiving.
    • Final sale items are not eligible for returns or exchanges.
    • To process your return/exchange, please contact us at [email protected]
    • Please click here for more details>>> Return & Exchange Policy
